4074EHG

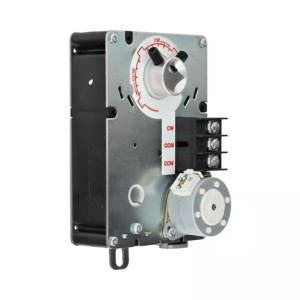

* product series image displayed

4074EHG | Resideo | Actuators & Dampers

KIT - FC37A TERMINAL BOARD

Brand:Resideo

MPN:4074EHG

SKU:4074EHG

List Price:

$64.50

Today's Price:

$33.54



Availability: Usually Ships in Less Than 7 Business Days
Available Inventory
Lead times are estimates based on our Memphis location and subject to change without notice based on customer demand.

Need more?
Just order your desired quantity and we'll ship the available inventory immediately while we source the remaining quantity to get you all the products you need as soon as possible.

We can also reserve the available inventory and ship once we acquire the remaining quantity from the supplier. Just choose "Ship Complete" at checkout.

product specifications

Type

Terminal Board

product series specifications

    Supply Voltage:
  • 24 VAC ±20%, 50/60 Hz
    Control Signal:
  • Two-position, floating, Proportional 0-10 VDC, 4-20 mA
    Auxiliary Switch:
  • NO or NC, 50 VA, 24 VAC, Differential: Optional 3 angular degree minimum
    Action:
  • Non-spring return
    Torque:
  • 35 in-lb, 70 in-lb
    Rotation:
  • CW and CCW
    Noise:
  • 45-60 dBA at 1 meter maximum
    Operating Temperature:
  • 20° to 125‚Ñâ (-18° to 50‚ÑÉ)
    Operating Humidity:
  • 5% to 95% RH noncondensing
    Stroke:
  • Selectable: 45 degree, 60 degree, 90 degree
    Weight:
  • 1.3 lb (0.59 Kg)
    Approvals:
  • UL File #E4436; plenum rated, CE (select models only)
    Warranty:
  • 1 Year

product series features

  • Superior A/C synchronous submotor for consistent timing and long life
  • Manual declutch lever for override
  • Two minimum position setscrews included
  • Perfect for Honeywell D690 Round Dampers
  • Square shaft input only

more information & related documents

Series Description

The Honeywell ML6161 and ML7161 actuators have 35 in-lb (4 Nm) torque ratings and the ML6174 and ML7174 have 70 in-lb (8 Nm) of torque. These non-spring return actuator families are designed to control VAV terminal unit dampers or Honeywell ball valves. The ML61xx models take an SPDT/floating control signal and the ML71xx models take a 2-10 VDC (or 4-20 mA, with a 500 ohm resistor) control signal.

Kele Description

KIT - FC37A TERMINAL BOARD

Manufacturer

Resideo
