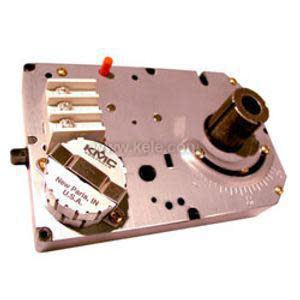

![MEP-5061](https://assets.kele.com/product-assets/kmc-controls/skus/mep-5061/images/484_lwg_mep-5061.jpg)
MEP-5061 | KMC Controls | Actuators & Dampers
Actuator: Tri-State, Non-Failsafe, 24VAC, 50 in-lbs, 18 Deg/min
Brand:KMC Controls
MPN:MEP-5061
SKU:MEP-5061
product specifications
Type
Accessory
Weight
2
product series specifications
- Input Impedance:
- 80 kΩ @ 0/2-10 VDC; 500Ω @ 4-20 mA (proportional models)
- Motor:
- DC with brushes (MA40-70xx, MA41-70xx, MF40-70xx, MF41-70xx); Brushless DC (all others)
- Wiring:
- 3-foot cable, 18 AWG
- Conduit Connection:
- 1/2" FNPT
- Action:
- Mounting orientation direct/reverse acting
- Rotation:
- 95° ±5°
- Manual Override:
- Crank (MA41, MF41, MS41 models)
- Noise:
- <60 db @ 3' (1m)
- Resolution:
- 100 steps
- Life Expectancy:
- 60,000 cycles
- Operating Temperature:
- -22° to 140°F (-30° to 60°C)
- Operating Humidity :
- 15 to 95% RH
- Enclosure Rating:
- NEMA 2 (IP54) (35, 60, 133 in-lb models), NEMA 4 (IP56) (150 in-lb models)
- Approvals:
- CE, UL File # E9429
- Warranty:
- 5 years
product series features
- Direct mount to round or square shaft
- NEMA 4 models available
- Overload protection on all models
more information & related documents
Series Description
The Schneider Electric SmartX Series direct coupled, spring return actuators accept two-position, tri-state, or proportional control signals from a DDC control system or a thermostat and are designed to provide years of trouble-free control for HVAC dampers.
Kele Description
ACT 3WIRE 50 IN LB 24VAC 5 MINUTE STROKE
Manufacturer
KMC Controls
