TS-470-P

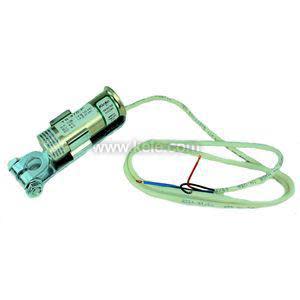

TS-470-P | Kele | Actuators & Dampers

Damper End Switch Plenum Rated

Brand:Kele

MPN:TS-470-P

SKU:TS-470-P

List Price:

$131.00

Today's Price:

$68.12



(login for better pricing)
110 in stock

product specifications

Type

Switch

product series specifications

Contact Rating:

Non-plenum: SPDT; 2A @ 120 VAC, 1A @ 240 VAC

P models: SPDT; 1A @ 120 VAC, 240 VAC

Wiring:

TS(1)-470 3' (0.9 m) length, AWG 18, 3-conductor cable; green = common, black = N.C., white = N.O.

TS(1)-470-2 3' (0.9 m) length, AWG 18, two 3-conductor cables; green = common, black = N.C., white = N.O.

TS(1)-470-P 3' (0.9 m) length, plenum AWG 18, 3-conductor cable; black = common, blue = N.C., red = N.O.

Switch Type:Encapsulated mercury switch, contains 0.03 cc mercury

Switch Angle:Makes at 15° below horizontal

Operating Temperature:-30° to 130°F (-34° to 54°C)

Mounting:TS- 1/2" (1.3 cm) damper shaft; TS1- 1" (2.5 cm) damper shaft

Dimensions:

TS- 1.4"H x 1.0"W x 4.4"L (3.6 x 2.5 x 11.1 cm)

TS1- 1.5"H x 1.8"W x 5.5"L (3.8 x 4.5 x 14.0 cm)

Weight:TS- 0.46 lb (0.21 Kg); TS1- 0.8 lb (0.36 Kg)

Warranty:1 year

product series features

  • Easy to install
  • Easily adjustable

more information & related documents

Series Description

The TS-470 Series damper position switch consists of an encapsulated mercury switch mounted on a 1/2 in (1.3 cm) damper shaft crank arm. The TS1-470 Series includes the same switch, mounted on a 1 in (2.5 cm) crank arm. They are mounted on a horizontal damper shaft to provide opened/closed indication. Switch contacts are normal when the cable end of the switch is horizontal or above, and makes when the cable end drops more than 15º below horizontal. These switches are ideal for Building Automation System BAS and HVAC applications.

Kele Description

DAMPER END SWITCH/ONE SPDT/1/2" SHAFT/SS/PLENUM RA
