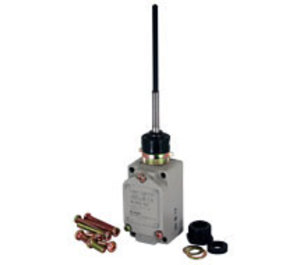

KLNJ-A2 | Kele | Actuators & Dampers
WHISKER SWITCH 10A 120V CONT
Brand:Kele
MPN:KLNJ-A2
SKU:KLNJ-A2
product specifications
Type
Switch
product series specifications
Contact Rating: 10A @ 24 VAC, 10A @ 120 VAC, 6A @ 24 VDC
Contact Type: 1 N.O. and 1 N.C.
Wiring Terminations: Screw terminals
Conduit Connection: 1/2" NPT
Switch Angle: 15° make, 6° reset
Operating Temperature: -13° to 131°F (-25° to 55°C)
Enclosure Rating: IP67
Dimensions: 8.0"H x 1.6"W x 1.7"D (20 x 4.0 x 4.2 cm)
Weight: 0.5 lb (0.2 Kg)
Approvals: CE, UL File #E117960
Warranty: 1 year
product series features
- Plastic coated spring-rod whisker for long life
- Captive wiring cover screws to save time
- Heavy duty 10A @ 120 VAC contacts
more information & related documents
Series Description
The KLNJ-A2 whisker switch is a high-quality, multi-directional contact switch with a plastic coated spring-rod whisker. It is perfect for sensing damper blade position in Building Automation Systems, BAS, or HVAC applications. Whisker switches can be used to provide position status for a valve linkage or other mechanical devices.
Kele Description
WHISKER SWITCH 10A 120V CONT
Manufacturer
Kele
Related Documents
KLNJ-A2 Datasheet
