MP8000-6350 | Johnson Controls | Actuators & Dampers
50"SQ DIAPHRAGM KIT FOR MP84
Brand:Johnson Controls
MPN:MP8000-6350
SKU:MP8000-6350
product specifications
Accessory Type
Diaphragm/Seal Kit
product series specifications
Maximum Control Pressure: 25 psig (172 kPa)
Air Connection: Barbed Fitting for 1/4 in. O.D. Polytubing
Ambient Operating Temperature Limits: -20 to 150°F (-29 to 66°C)
Ambient Storage Temperature Limits: -40 to 176°F (-40 to 80°C)
Materials - Housing: Die-Formed Carbon Steel (Coated with Corrosion-Resistant Finish)
Diaphragm: Ethylene Propylene Diene Monomer (EPDM)
Stem Seals: Nitrile U-Cups
Bearings: Reinforced Thermoplastic
Yoke: Formed Steel (Coated with Corrosion-Resistant Finish)
Spring: Chrome-Silicon Steel (Coated with Corrosion-Resistant Finish)
Stem Components:Stainless Steel
product series features
- Pneumatic positioner
- Quick-fit coupler system
- Action reversible in-situ
- Optional hand wheel for factory or in-situ installation
- Optional auxiliary switches and feedback potentiometer available
more information & related documents
Series Description

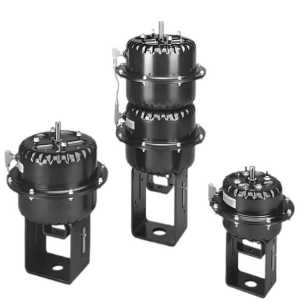

MP8000 Series Pneumatic Valve Actuators are designed to accurately position chilled water, hot water, and steam control valves in response to a pneumatic signal from a controller. A pneumatic or electric valve positioner can be ordered separately for use in applications where sequential operation is desired or additional positioning power is necessary. MP8000 Series actuators have a molded, synthetic rubber diaphragm contained in a sturdy, corrosion-resistant housing that protects against dirt and damage. This molded diaphragm provides a constant effective area throughout the actuator stroke.
Kele Description
50"SQ DIAPHRAGM KIT FOR MP84
Manufacturer
Johnson Controls
