M9000-161

M9000-161 | Johnson Controls | Actuators & Dampers

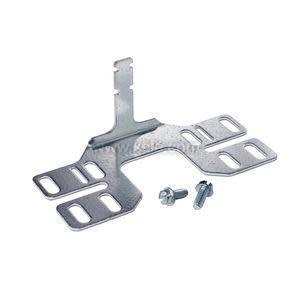

Antirotation Bracket For M9206 Actuator

Brand:Johnson Controls

MPN:M9000-161

SKU:M9000-161

List Price:

$41.41

Today's Price:

$21.53



Availability: Usually Ships in Less Than 10 Business Days
Available Inventory
Lead times are estimates based on our Memphis location and subject to change without notice based on customer demand.

Need more?
Just order your desired quantity and we'll ship the available inventory immediately while we source the remaining quantity to get you all the products you need as soon as possible.

We can also reserve the available inventory and ship once we acquire the remaining quantity from the supplier. Just choose "Ship Complete" at checkout.

product specifications

Type

Bracket

product series specifications

    Input Impedance:
  • 200 k‚Ѷ @ 0/2-10 VDC; 500‚Ѷ @ 4-20 mA
    Motor:
  • Brushless DC
    Wiring:
  • 18 AWG, 120" (3m), plenum leads or 18 AWG, 48" (1.2m), appliance cable
    Conduit Connection:
  • 1/2" conduit connectors (M9203 only); Integral 3/8" flex connectors (all others)
    Action:
  • Select by wiring (2-pos./floating); Switch or hub re-position (proportional)
    Rotation:
  • 95° (M9203, M9208); 93° (M9220)
    Manual Override:
  • Manual crank (M9220 only)
    Noise:
  • <55 db (M9203); <52 db (M9208); <40 db (M9220 2-pos.); <66 db (M9220 floating/prop.)
    Resolution:
  • 120 steps
    Life Expectancy:
  • 60,000 cycles, 1.5 million repositions
    Operating Temperature:
  • -40° to 140°F (-40° to 60°C) (M9203, M9208); -40° to 131°F (-40° to 55°C) (M9220)
    Operating Humidity:
  • 0 to 95% RH
    Enclosure Rating:
  • NEMA 2 (IP54)
    Approvals:
  • CE, UL FIle #E22734. CSA C-tick (models vaires) (M9203, M9208); (M9220)
    Warranty:
  • 5 years

product series features

  • Reversible mounting design
  • Electronic stall detection
  • Models with auxiliary switches available (i.e. -AGC, -GGC, etc.)
  • Minimum 60,000 cycles life expectancy
  • Models with adjustable control signal (-HGx)

more information & related documents

Series Description

The Johnson Controls M9200 Series spring return actuators are designed to position return air, exhaust air, or outside air dampers. Torques range from 27 to 177 in-lbs and available control signals are two-position (on/off), tri-state (floating), and proportional.

Kele Description

ANTI ROTATION BRACKET FOR M9206

Manufacturer

Johnson Controls
