M9000-151 | Johnson Controls | Actuators & Dampers

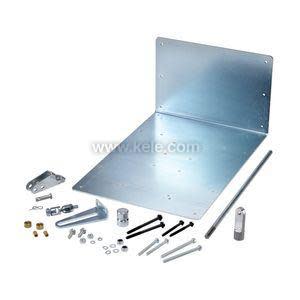

Base Mount Linkage Kit For Remote Inside Duct Mounting
Brand:Johnson Controls
MPN:M9000-151
SKU:M9000-151
product specifications
Type
Mounting
product series specifications
Input Impedance: 200 kO @ 0/2-10 VDC; 500 O @ 4-20 mA
Motor: Brushless DC
Wiring: 18 AWG, 120" (3m), plenum leads or 18 AWG, 48" (1.2m), appliance cable
Conduit Connection: 1/2" conduit connectors (M9203 only); Integral 3/8" flex connectors (all others)
Action: Select by wiring (2-pos./floating); Switch or hub re-position (proportional)
Rotation: 95° (M9203, M9208); 93° (M9220)
Manual Override: Manual crank (M9220 only)
Noise: < 55 db (M9203); < 52 db (M9208); < 40 db (M9220 2-pos.); < 66 db (M9220 floating/prop.)
Resolution: 120 steps
Life Expectancy: 60,000 cycles, 1.5 million repositions
Operating Temperature: -40° to 140°F (-40° to 60°C) (M9203, M9208); -40° to 131°F (-40° to 55°C) (M9220)
Operating Humidity: 0 to 95% RH
Enclosure Rating: NEMA 2 (IP54)
Approvals: CE, UL File #E22734. CSA C-tick (models vaires) (M9203, M9208); (M9220)
Warranty: 5 years
product series features
- Reversible mounting design
- Electronic stall detection
- Models with auxiliary switches available (i.e. -AGC, -GGC, etc.)
- Minimum 60,000 cycles life expectancy
- Models with adjustable control signal (-HGx)
more information & related documents
Series Description
The Johnson Controls M9200 Series spring return actuators are designed to position return air, exhaust air, or outside air dampers. Torques range from 27 to 177 in-lbs and available control signals are two-position (on/off), tri-state (floating), and proportional.
Kele Description
UNIVERSAL MOUNTING PLATE
Manufacturer
Johnson Controls
Related Documents
M9206-AGx-2S Installation Instructions
M9206-Bxx-2S Installation Instructions
M9206-Bxx-2S Spec Sheet
M9206-GGx-2S Installation Instructions
M9208 Installation Instructions
M9208-Bxx Installation Instructions
M9210-Bxx-3 Specification Sheet
M9216 Specification Sheet
M9220-Bxx-3 Specification Sheet
Spring Return Actuator Cross Reference
