220736A | Honeywell | Actuators & Dampers

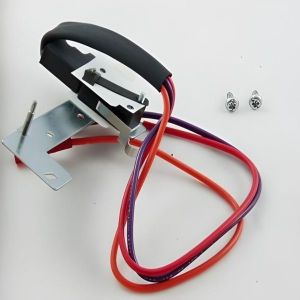

INTERNAL AUX. SWITCH KIT
Brand:Honeywell
MPN:220736A
SKU:220736A
product specifications
Type
Switch
product series specifications
Supply Voltage: 20-30 VAC, 50/60 Hz
Motor:
M9104, 06 Synchronous with magnetic clutch
M9108, 16, 24 32 Brushless DC
Wiring:
M9104 48" (1.2 m) plenum leads
M9106 0.25" (6 mm) spade terminals
M9108, 16, 24, 32 Screw teminals 22-14 AWG
Action: DA/RA wiring connections (2-pos., floating); Jumper selection (proportional)
Rotation: 90°
Manual Override: Disengage button
Noise:
M9104, 06 < 35 dB @ 3' (1m)
M9108, 16, 24, 32 < 45 dB @ 3' (1m)
Resolution: 100 Steps
Life Expectancy: 100,000 cycles, 2.5 million repositions
Operating Temperature: -4° to 122°F (-20° to 50°C)
Operating Humidity: 0 to 90% RH
Approvals: CE, UL File #E27734, CSA, C-Tick, C-tick, CSA (varies by model)
Warranty: 5 years
product series features
- Manual override
- Electronic stall detection
- Travel indicator
more information & related documents
Series Description
The Johnson Controls M9100 Series non-spring return actuators offer consistent designs and operating features to make installation easy, and they have many built-in features to minimize the need for add-on options. Manufactured in an ISO-9001 facility, these actuators are high quality, reliable, and long lasting.
Kele Description
INTERNAL AUX. SWITCH KIT
Manufacturer
Honeywell
Related Documents
