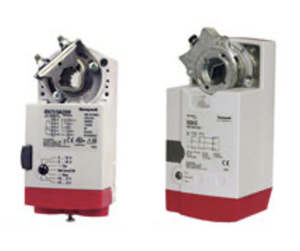

* product series image displayed
205849A | Honeywell | Actuators & Dampers
5/8IN HUB FOR USE W/300LB DCAS
Brand:Honeywell
MPN:205849A
SKU:205849A
product specifications
Torque
300 in-lb
Type
Hub Insert
Weight
0.1
product series specifications
- Supply Voltage:
- 21-27 VAC, 50/60 Hz, 24 VDC (except MN6120, MN6134)
- Motor:
- Brushless DC; Synchronous with magnetic clutch (floating 175, 300 in-lb)
- Wiring:
- Enclosed terminals
- Action:
- Switching selectable direct/reverse acting
- Rotation:
- 95° ± 3°
- Drive Time:
- 95 seconds
- Manual Override:
- Disengage button
- Noise:
- :
- 44, 88 in-lb <35 dB @ 3' (1m)
- :
- 175, 300 in-lb <40 dB @ 3' (1m)
- Resolution:
- 150 steps (2-10 VDC), 190 steps (0-10 VDC)
- Life Expectancy:
- 60,000 cycles, 1 million repositions
- Operating Temperature:
- -5° to 140°F (-20° to 60°C)
- Operating Humidity:
- 5 to 95% RH
- Approvals:
- UL File #E4996, CE, C-tick, plenum rated
- Warranty:
- 5 years
product series features
- Adjustable mechanical range stops
- Auto adapt on modulating models
- Internal or field-installable auxiliary switches
- Signal mode switch
- Adjustable zero and span
- Mechanical override declutch
- Detachable wiring cover
- Consistent wiring
more information & related documents
Series Description
The Honeywell MN Series actuators are non-spring return direct coupled actuators from Honeywell. They are designed and tested to provide reliable non-spring return control for dampers and valves that require up to 300 in-lb (34 Nm) of torque. The MN Series is powered by 24 VAC/VDC and has an excellent feature set that combines flexibility and simplicity.
Kele Description
5/8IN HUB FOR USE W/300LB DCAS
Manufacturer
Honeywell
MN6105 MN6110 Product Data x
