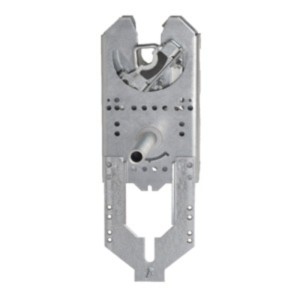

ZG-JSL | Belimo | Actuators & Dampers
Jackshaft linkage for ½” to 1.05” shafts. Notes: EF requires ZG-121; LF requires K6-1 clamp.
Brand:Belimo
MPN:ZG-JSL
SKU:ZG-JSL
10 in stock
product specifications
Type
Linkage/Linkage Kit
product series specifications
- Supply Voltage:
- 24 VAC ±20% 50/60 Hz
- Control Signal:
- Two-position, floating, Proportional 2-10 VDC, 4-20 mA
- Operating Humidity:
- 5 to 95% RH
- Approvals:
- UL, CE, cUL
- Warranty:
- 5 years
product series features
- Fail-safe operation upon power loss for positive damper or valve positioning
- 360 in-lb is more power than spring return models
- LED Status Indication
- Visible position indicator
more information & related documents
Series Description
The Belimo GK Series fail-safe actuators provide 360 in-lb of torque for operation of dampers up to approximately 90 square feet. The direction of rotation is reversible, the fail-safe position is adjustable and a manual override button is standard. Add-on field mount auxiliary switches and feedback potentiometers are available.
Kele Description
JACKSHAFT LINKAGE FOR AF, NF, LF, AM, NM
Manufacturer
Belimo
Related Documents
GKB24-3 Technical Data x
