ZG-ECON1 | Belimo | Actuators & Dampers

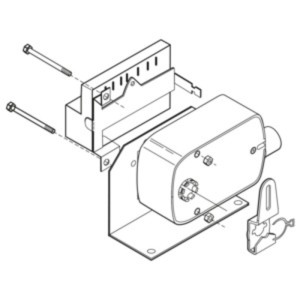

Honeywell ECON retrofit kit with module bracket.
Brand:Belimo
MPN:ZG-ECON1
SKU:ZG-ECON1
product specifications
Actuator Series
Mechanical Accessory
Application Type
Accessory
Type
Mounting
Unit of Measure
PC
product series specifications
Input Impedance: SR Models: 100 kO @ 0/2-10 VDC; 500 O @ 4-20 mA; MFT Models: 100 kO @ 0/2-10 VDC; 500 O @ 4-20 mA; 1500 O @ PWM, float, on/off
Motor: Brushless DC
Manual Override: Manual crank (except TF)
Wiring: TFB, LF: 3' (0.9 m) cable, 18 AWG, plenum rated (modulating models) - 3' (0.9 m) appliance cable (on/off, MFT, -S models); NFB, AFB, EFB: 3' (0.9 m) appliance cable, 18 AWG; NEMA 4: Terminal blocks inside housing
Conduit Connection: w/Cables: 1/2" NPT; NEMA 4: Four knockouts for waterproof conduit fittings
Feedback: 2-10 VDC (-SR and -MFT models only)
Auxiliary Switch: TFB, LF (-S): 1 SPDT, 3A @ 250V; NFB, AFB, EFB (-S): 2 SPDT, 3A @ 250V
Action: 2-Position: CW/CCW reversible mounting; Float/Prop.: DA/RA switch, CW/CCW rev. mt.
Spring Return Time: < 60 seconds
Rotation: 95°
Noise: TFB, LF, NFB: < 62 db; AFB: < 45 db; EFB: < 71.4 db
Resolution: 100 steps
Life Expectancy: 2-Position: 60,000 cycles; Float/Prop.: 60,000 cycles; 500,000 repositions
Operating Temperature: -22° to 122°F (-30° to 50°C); NEMA 4 models with heater option can go down to -40°C
Operating Humidity: 5 to 95% RH
Enclosure Rating: TFB: NEMA 2 (IP42); LF, NFB, AFB, EFB: NEMA 2 (IP54); NEMA 4: NEMA 4 (IP66)
Approvals: cULus, CE, RoHS
Warranty: 5 years
product series features
- Symmetrical, reversible rotation design for installation flexibility
- ISO 9001 manufacturing facility assures high quality
- NEMA 4 Enclosure Rating for outdoor locations available on AFB, EFB and NFB models
- Low power consumption for high efficiency and smaller transformer sizing
- MFT models offer flexibility to customize and adapt a single actuator to various controllers and applications
more information & related documents
Series Description
The Belimo TFB, Belimo LF, Belimo NFB, Belimo AFB, and Belimo EFB Series direct-coupled air damper actuators provide control of dampers and valves for spring return applications. The damper actuators come in two-position, tri-state, proportional, and Multi-Function Technology (MFT) models. All include spring return to drive the damper or valve to a normal position when power is lost. Unique universal power supply models work with 24 Volt AC to 240 Volt AC or 24 Volt DC to 125 Volt DC. The new EFB Series is true spring return with a high 270 in-lb torque output and most models are available with optional NEMA 4 housing. It is possible to dual-mount EF actuators on one shaft, for a total of 540 in-lb. This actuator series is indispensable for Building Automation System BAS and HVAC applications.
Kele Description
MOUNTING KIT FOR ECONOMIZER LF
Manufacturer
Belimo
