ZG-113 | Belimo | Actuators & Dampers

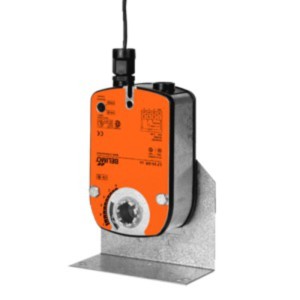

TFB(X) right angle bracket (4-1/2 H x 5-1/2 W x 2-1/2 base).

Brand:Belimo

MPN:ZG-113

SKU:ZG-113

List Price:

$54.00

Today's Price:

$28.08

Lead time of 11 days. Chat with Kele experts now

product datasheet

catalog page

product specifications

Actuator Series

Mechanical Accessory

Application Type

Accessory

Type

Bracket

Unit of Measure

product series specifications

Input Impedance: SR Models: 100 kO @ 0/2-10 VDC; 500 O @ 4-20 mA; MFT Models: 100 kO @ 0/2-10 VDC; 500 O @ 4-20 mA; 1500 O @ PWM, float, on/off

Motor: Brushless DC

Manual Override: Manual crank (except TF)

Wiring: TFB, LF: 3' (0.9 m) cable, 18 AWG, plenum rated (modulating models) - 3' (0.9 m) appliance cable (on/off, MFT, -S models); NFB, AFB, EFB: 3' (0.9 m) appliance cable, 18 AWG; NEMA 4: Terminal blocks inside housing

Conduit Connection: w/Cables: 1/2" NPT; NEMA 4: Four knockouts for waterproof conduit fittings

Feedback: 2-10 VDC (-SR and -MFT models only)

Auxiliary Switch: TFB, LF (-S): 1 SPDT, 3A @ 250V; NFB, AFB, EFB (-S): 2 SPDT, 3A @ 250V

Action: 2-Position: CW/CCW reversible mounting; Float/Prop.: DA/RA switch, CW/CCW rev. mt.

Spring Return Time: < 60 seconds

Rotation: 95°

Noise: TFB, LF, NFB: < 62 db; AFB: < 45 db; EFB: < 71.4 db

Resolution: 100 steps

Life Expectancy: 2-Position: 60,000 cycles; Float/Prop.: 60,000 cycles; 500,000 repositions

Operating Temperature: -22° to 122°F (-30° to 50°C); NEMA 4 models with heater option can go down to -40°C

Operating Humidity: 5 to 95% RH

Enclosure Rating: TFB: NEMA 2 (IP42); LF, NFB, AFB, EFB: NEMA 2 (IP54); NEMA 4: NEMA 4 (IP66)

Approvals: cULus, CE, RoHS

Warranty: 5 years

product series features

Symmetrical, reversible rotation design for installation flexibility
ISO 9001 manufacturing facility assures high quality
NEMA 4 Enclosure Rating for outdoor locations available on AFB, EFB and NFB models
Low power consumption for high efficiency and smaller transformer sizing
MFT models offer flexibility to customize and adapt a single actuator to various controllers and applications

more information & related documents

Series Description

The Belimo TFB, Belimo LF, Belimo NFB, Belimo AFB, and Belimo EFB Series direct-coupled air damper actuators provide control of dampers and valves for spring return applications. The damper actuators come in two-position, tri-state, proportional, and Multi-Function Technology (MFT) models. All include spring return to drive the damper or valve to a normal position when power is lost. Unique universal power supply models work with 24 Volt AC to 240 Volt AC or 24 Volt DC to 125 Volt DC. The new EFB Series is true spring return with a high 270 in-lb torque output and most models are available with optional NEMA 4 housing. It is possible to dual-mount EF actuators on one shaft, for a total of 540 in-lb. This actuator series is indispensable for Building Automation System BAS and HVAC applications.

Kele Description

MOUNTING BRACKET: TF
