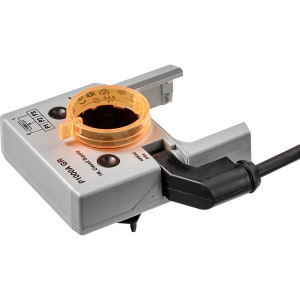

P1000A | Belimo | Actuators & Dampers
FDBACK POT 1K OHM FOR LMB, NMB, AMB, GMB
Brand:Belimo
MPN:P1000A
SKU:P1000A
product specifications
Type
Potentiometer
product series specifications
Supply Voltage: 24 VAC ±20% 50/60 Hz, 24 VDC ±10%, 100 VAC, 240 VAC
Motor: Brushless DC
Wiring: 3' (0.9 m) plenum cable, 18 AWG, terminals
Action: Non-spring return
Rotation: 95 degrees, Rev. with switch
Manual Override: Pushbutton disengage
Noise: <45 db @ 3' (1m); <35 db @ 3' (1m) (LMB models)
Resolution: 100 steps
Life Expectancy: 100,000 cycles, 1 million repositions
Operating Temperature: -22° to 122°F (-30° to 50°C)
Operating Humidity: 5 to 95% RH
Approvals: UL94-5VA
Warranty: 5 years
product series features
- Manual override for testing and verification
- Reversing switch for control flexibility
- CSA and CE approved for worldwide application
- Plenum-rated housing and cable connections
- NEMA 4 models available for outdoor locations
more information & related documents
Series Description
The Belimo LMB, NMB, AMB, GMB Series direct coupled damper actuators and valve actuators provide damper control and valve control for non-spring return applications in Building Automation Systems, BAS, or HVAC environment. Each actuator comes in two-position, tri-state (floating), proportional, and Multi-Function Technology (MFT) models. All actuators include a manual release mechanism for manual override.
Kele Description
FDBACK POT 1K OHM FOR LMB, NMB, AMB, GMB
Manufacturer
Belimo
