P10000A | Belimo | Actuators & Dampers

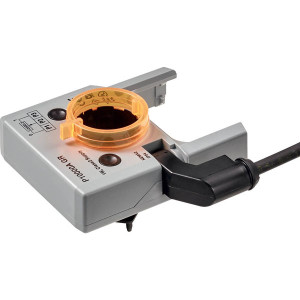

FDBACK POT 10K OHM FOR LMB, NMB, AMB, GM

Brand:Belimo

MPN:P10000A

SKU:P10000A

List Price:

$246.65

Today's Price:

$128.26

(login for better pricing)

Lead time of 9 days. Chat with Kele experts now

catalog page

product specifications

Type

Potentiometer

product series specifications

Supply Voltage: 24 VAC ±20% 50/60 Hz, 24 VDC ±10%, 100 VAC, 240 VAC

Motor: Brushless DC

Wiring: 3' (0.9 m) plenum cable, 18 AWG, terminals

Action: Non-spring return

Rotation: 95 degrees, Rev. with switch

Manual Override: Pushbutton disengage

Noise: <45 db @ 3' (1m); <35 db @ 3' (1m) (LMB models)

Resolution: 100 steps

Life Expectancy: 100,000 cycles, 1 million repositions

Operating Temperature: -22° to 122°F (-30° to 50°C)

Operating Humidity: 5 to 95% RH

Approvals: UL94-5VA

Warranty: 5 years

product series features

Manual override for testing and verification
Reversing switch for control flexibility
CSA and CE approved for worldwide application
Plenum-rated housing and cable connections
NEMA 4 models available for outdoor locations

more information & related documents

Series Description

The Belimo LMB, NMB, AMB, GMB Series direct coupled damper actuators and valve actuators provide damper control and valve control for non-spring return applications in Building Automation Systems, BAS, or HVAC environment. Each actuator comes in two-position, tri-state (floating), proportional, and Multi-Function Technology (MFT) models. All actuators include a manual release mechanism for manual override.

Kele Description

FDBACK POT 10K OHM FOR LMB, NMB, AMB, GM

Manufacturer

Belimo
