Z7852EQ

Z7852LQE | Security Door Controls | Access Control

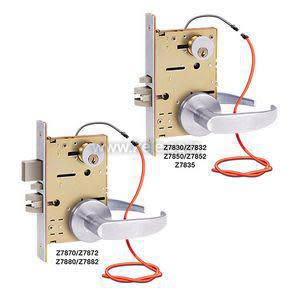

Electric Pro Mortise, 626, Eclipse

Brand:Security Door Controls

MPN:Z7852LQE

SKU:Z7852EQ

List Price:

$2,198.00

Today's Price:

$1,142.96



(login for better pricing)

product specifications

Output

12/24 VDC

Type

Electric Strikes

Color

Chrome

Strike Style

Electric

product series specifications

    Supply Voltage:
  • 12/24 VDC
    Supply Current:
  • 0.6 Amp @ 12 VDC, 0.3 Amp @ 24 VDC
    Mode:
  • Field Reversible, Failsafe/Failsecure
    Door Thickness:
  • 1.75‚Ä= (4.44 cm) standard
    Door Preparation:
  • ANSI A156.13
    Latch Bolt:
  • 0.75‚Ä= (1.9 cm) anti-friction bolt with auxiliary deadlatch
    Strike:
  • 4.87‚Ä= (12.9 cm) standard
    Key Override:
  • 6 PIN, 1.25‚Ä= Mortise cylinder with Schlage ‚ÄòC' Keyway (optional)
    Backset:
  • 2.75‚Ä= (6.98 cm)
    Warranty:
  • 1 year

product series features

  • New or retrofit application, replaces most mechanical locks
  • Field selectable mode
  • Field selectable function
  • Field selectable voltage
  • Field selectable handing
  • Order with SDC trim or less trim. Compatible with Schlage trim provided by others
  • Key latch retraction

more information & related documents

Series Description

The Z7800 Selectric Pro Series locksets are designed for the access control of openings in commercial, industrial and institutional facilities where code compliance, dependable operation and resistance to physical abuse is required.

Kele Description

ELECTRIC PRO MORTISE, 626, ECLIPSE

Manufacturer

Security Door Controls
