PTH-4Q-DPS

PTH-4Q-DPS | Security Door Controls | Access Control

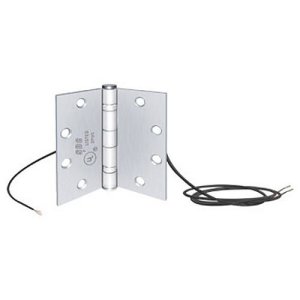

4 Conductor Power Transfer Hinge

Brand:Security Door Controls

MPN:PTH-4Q-DPS

SKU:PTH-4Q-DPS

List Price:

$603.00

Today's Price:

$313.56



Availability: Usually Ships in Less Than 9 Business Days
Available Inventory
Lead times are estimates based on our Memphis location and subject to change without notice based on customer demand.

Need more?
Just order your desired quantity and we'll ship the available inventory immediately while we source the remaining quantity to get you all the products you need as soon as possible.

We can also reserve the available inventory and ship once we acquire the remaining quantity from the supplier. Just choose "Ship Complete" at checkout.

product specifications

Type

Power Transfer Hinge

Color

Chrome

Strike Style

Hinge

Cable

5 ft

product series specifications

    Output:
  • Concealed Door Position Switch SPDT, 250mA @ 30VDC
    Dimensions:
  • 4.5‚Ä=H x 4.5‚Ä=W (11.4 x 11.4 cm)
    Approvals:
  • UL 10B Listed for 3Hr fire rated doors. Look for the ‚ÄòF' mark located next to the UL symbol that confirms the PTH series hinge UL fire rating.
    Warranty:
  • 1 year
    PTH-4Q :
    :
  • Four (4) conductor power transfer hinge
    :
  • 1A @ 12/24V per pair
    :
  • Weight 3.1 lb (1.4kg)
    :
    PTH-4Q-DPS :
    :
  • Four (4) conductor power transfer hinge with door status contact
    :
  • 1A @ 12/24V per pair
    :
  • Door status contact: 250 mA @ 30 VDC
    :
  • Weight 3.1 lb (1.4kg)
    :
    PTH-10Q :
    :
  • Ten (10) conductor power transfer hinge
    :
  • 1A @ 12/24V per pair
    :
  • Weight 3.1 lb (1.4kg)
    PTH-10Q-DPS :
    :
  • Ten (10) conductor power transfer hinge with door status contact
    :
  • 1A @ 12/24V per pair
    :
  • Door status contact: 250 mA @ 30 VDC
    :
  • Weight 3.1 lb (1.4kg)
    PTH-2-4Q :
    :
  • Six (6) conductor power transfer hinge
    :
  • 1-pair 16A inrush, 4A continuous
    :
  • 2-pair 1A @ 12/24V
    :
  • Weight 2.0 lb (0.9 kg)
    PTH-2-4QDPS :
    :
  • Six (6) conductor power transfer hinge, with door status contact
    :
  • 1-pair 16A inrush, 4A continuous;
    :
  • 2-pair 1A @ 12/24V
    :
  • Door status contact: 250 mA @ 30 VDC
    :
  • Weight 2.0 lb (0.9 kg)

product series features

  • 5 ft cable standard with 4- and 10-wire hinges
  • UL10B listed for 3 hour fire rated doors
  • Wire replacement warranty
  • Tested 750,000 cycles

more information & related documents

Series Description

Installed in the center hinge position of a door, the PTH Series electric power transfer hinges provide a concealed and vandal resistant method for running wires from the frame to doors equipped with electric locks and exit devices.

Kele Description

4 CONDUCTOR POWER TRANSFER HINGE

Manufacturer

Security Door Controls
