PTH-4Q | Security Door Controls | Access Control

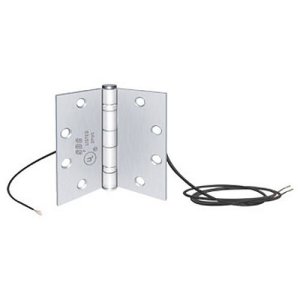

4 Wire Power Transfer Hinge 45 in X 45 in 626
Brand:Security Door Controls
MPN:PTH-4Q
SKU:PTH-4Q
product specifications
Type
Power Transfer Hinge
Weight
1.2
Color
Chrome
Strike Style
Hinge
Cable Length
4 ft
product series specifications
- Output:
- Concealed Door Position Switch SPDT, 250mA @ 30VDC
- Dimensions:
- 4.5‚Ä=H x 4.5‚Ä=W (11.4 x 11.4 cm)
- Approvals:
- UL 10B Listed for 3Hr fire rated doors. Look for the ‘F' mark located next to the UL symbol that confirms the PTH series hinge UL fire rating.
- Warranty:
- 1 year
- PTH-4Q :
- :
- Four (4) conductor power transfer hinge
- :
- 1A @ 12/24V per pair
- :
- Weight 3.1 lb (1.4kg)
- :
- PTH-4Q-DPS :
- :
- Four (4) conductor power transfer hinge with door status contact
- :
- 1A @ 12/24V per pair
- :
- Door status contact: 250 mA @ 30 VDC
- :
- Weight 3.1 lb (1.4kg)
- :
- PTH-10Q :
- :
- Ten (10) conductor power transfer hinge
- :
- 1A @ 12/24V per pair
- :
- Weight 3.1 lb (1.4kg)
- PTH-10Q-DPS :
- :
- Ten (10) conductor power transfer hinge with door status contact
- :
- 1A @ 12/24V per pair
- :
- Door status contact: 250 mA @ 30 VDC
- :
- Weight 3.1 lb (1.4kg)
- PTH-2-4Q :
- :
- Six (6) conductor power transfer hinge
- :
- 1-pair 16A inrush, 4A continuous
- :
- 2-pair 1A @ 12/24V
- :
- Weight 2.0 lb (0.9 kg)
- PTH-2-4QDPS :
- :
- Six (6) conductor power transfer hinge, with door status contact
- :
- 1-pair 16A inrush, 4A continuous;
- :
- 2-pair 1A @ 12/24V
- :
- Door status contact: 250 mA @ 30 VDC
- :
- Weight 2.0 lb (0.9 kg)
product series features
- 5 ft cable standard with 4- and 10-wire hinges
- UL10B listed for 3 hour fire rated doors
- Wire replacement warranty
- Tested 750,000 cycles
more information & related documents
Series Description
Installed in the center hinge position of a door, the PTH Series electric power transfer hinges provide a concealed and vandal resistant method for running wires from the frame to doors equipped with electric locks and exit devices.
Kele Description
4 WIRE PWR TRANSFER HINGE 45IN X 45IN 626
Manufacturer
Security Door Controls
Related Documents
PTH Datasheet x
