FP24 | Security Door Controls | Access Control

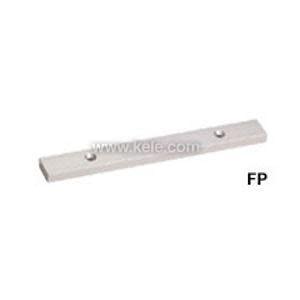

1/2 X 1-1/4 X 22 Filler Plate For 22 in Double Emlock Model
Brand:Security Door Controls
MPN:FP24
SKU:FP24
product specifications
Output
12 VDC
Type
Brackets
Weight
10
Color
Stainless Steel
Strike Style
Magnetic
product series specifications
- Supply Voltage:
- 12/24 VDC
- Supply Current:
- :
- 1511, 1513 350 mA at 24 VDC 670 mA at 12 VDC
- :
- 1512 700 mA at 24 VDC 1.3 A at 12 VDC
- Holding Force:
- 1650 lbs
- Dimensions:
- :
- 1511, 1513 11" L x 2.75" H x 1.56" D
- :
- (27.9 x 6.9 x 3.9 cm)
- :
- 1512 22" L x 2-3/4" H x 1.56" D
- :
- (55.8 x 6.9 x 3.9 cm)
- Weight:
- :
- 1511, 1513 11 lbs (4.9 kg)
- :
- 1512 26.4 lbs (11.9 kg)
- Approvals:
- UL, CSFM (3774-0324:100), MEA Listed (61-95-E)
- Warranty:
- 1 year
product series features
- 1650 lb holding force
- Autosensing 12/24 VDC voltage input
- ANSI/BHMA grade 1 compliant
- BHMA certified holding force
- Quick mount assembly
more information & related documents
Series Description
The 1510 Series is an ANSI grade 1 modular magnetic lock with 1650 lb. holding force. They are field upgradeable and can be serviced without removing from the door frame. When power is removed the holding force is released.
Kele Description
1/2 X 1-1/4 X 22 FILLER PLATE
Manufacturer
Security Door Controls
Related Documents
EMLocks 1500 Series Datasheet x
