E600 | Security Door Controls | Alarms & Indication

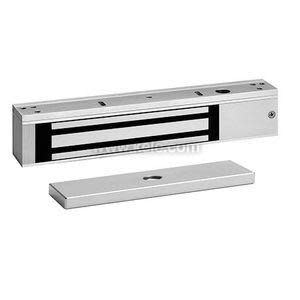

E600 Magnetic Lock D LS LED
Brand:Security Door Controls
MPN:E600
SKU:E600
List Price:
$713.00
Today's Price:
$370.76
Log in for customized pricingproduct specifications
Strike Style
Magnetic
Type
Magnetic Lock
Output
12 VDC,24 VDC
Holding Force
1650 lb
product series specifications
Supply Voltage: 12/24 VDC
Lock Status Contact SPDT, 250 mA @ 30 VDC
Door Status Contact SPDT, 250 mA @ 30 VDC
Lock Status Contact SPDT, 2 A @ 30 VDC
Door Status Contact SPDT, 250 mA @ 30 VDC
Warranty: 1 year
product series features
- E6200
- Retrofits Securitron M62 and Locknetics 70 locks
- Magnetic Bond Sensor indicates door locked with full holding power
- Door Status indicates door open or closed
- Epoxy sealed electronics, tamper resistant and weatherized for indoor and outdoor use
- Stainless steel machine screws and blind nuts
- 10 ft [3.05m] jacketed, stranded conductor cable
- Dual voltage 12/24VDC
- Architectural stainless steel housing, US32/630
- E1200 and E600
- Door status, lock status and bi-color LED
- Interlocking quick mount assembly
- Adjustable mounting bracket with choice of self drilling and tapping mounting screws or machine screws
- Wire access chamber with terminal block
- 628 Clear anodized aluminum
- E300-SDC
- Lock status and bi-color LED
more information & related documents
Series Description
The value priced Excel™ Architectural Series full featured magnetic locks are easier to install and provide superior, less obtrusive appearance compared to stainless steel epoxy sealed magnetic locks. Full monitoring is standard. The quick mount assembly reduces installation time compared to epoxy sealed magnetic locks. The value priced Excel™ Commercial Series full featured magnetic lock is made of an epoxy sealed satin stainless steel housing and utilizes the same mounting template as major competitive brands. Full monitoring is standard.
Kele Description
E600 MAGNETIC LOCK D LS LED
Manufacturer
Security Door Controls
Excel Series Datasheet
