443U | Security Door Controls | Access Control
Double Gang Box Momentary Single Pole, Double Throw And Timer Exit
Brand:Security Door Controls
MPN:443U
SKU:443U
product specifications
Type
Push Switch
Weight
0.5
Color
Stainless Steel
Strike Style
Push
Input
30 VDC
product series specifications
- Contact Rating:
- 6 Amp @ 30VDC
- Timer:
- 1 - 60 seconds, 12/24 AC/DC SPDT 2A (443U Only)
- Connections:
- Screw terminals
- Dimensions:
- :
- 1 gang box 2.87‚Ä= x 4.5‚Ä= (7.3 x 11.4 cm) (446U Only)
- :
- 2 gang box 4.5‚Ä= x 4.5‚Ä= (11.4 x 11.4 cm)
- Weight:
- 0.5 lb (0.22 kg)
- Warranty:
- 1 year
product series features
- Momentary DPST contact
- Single or Double gang
- Red button
- LED options
- Multiple finishes available
more information & related documents
Series Description

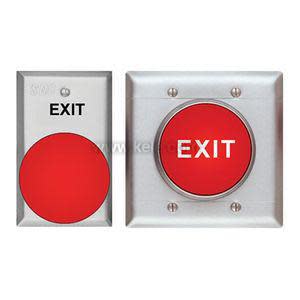

The conspicuous 440 Series heavy duty switch assemblies incorporate a 2-5/8 inch diameter mushroom button and heavyduty water resistant contacts. The large 2-gang mushroom assembly includes a heavy-duty steel bezel around the button to guard against abuse. When utilized as an Exit or REX switch, the assembly is easy to activate and stands out for persons without prior knowledge of egress operation.
Kele Description
DOUBLE GANG BOX MOMENTARY SPDT AND TIMER EXIT
Manufacturer
Security Door Controls
Related Documents
400 Series Datasheet x
