30-4-24-U-FS | Security Door Controls | Access Control

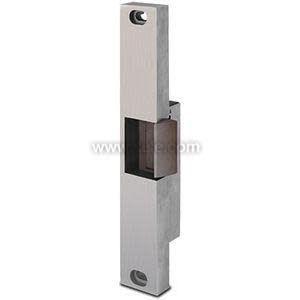

Stainless Steel Electric Strike 24VDC Dull Stainless Steel LL
Brand:Security Door Controls
MPN:30-4-24-U-FS
SKU:30-4-24-U-FS
product specifications
Type
Electric Strikes
Weight
2
Color
Stainless Steel
Strike Style
Electric
Input
24 VDC
product series specifications
- Supply Voltage:
- 12 VDC, 24 VDC
- Supply Current:
- 0.51 Amp @ 12VDC, 24 OHMS, 0.25 Amp @ 24VDC, 96 OHMS
- Weight:
- 1.2 lb (0.55 kg)
- Approvals:
- :
- Auxiliary Locks and Associated Products
- :
- ANSI / BHMA A156.5 - Grade1
- :
- DoD FSC 530
- :
- Burglary Protection Equipmet
- :
- ANSI / UL1034 - Grade1 Fire door accessories (fail secure only)
- :
- UL Listed file #BP7002 for the fire door assemblies up to 3 hrs. UL10B
- Warranty:
- 1 year
product series features
- All stainless steel for corrosion resistance and strength
- Tamper resistant, heavy-duty construction
- Horizontal keeper adjustment for door and frame misalignment
- Pullman keeper
- Non-handed, reversible
- Fail secure (standard) or Failsafe (optional)
more information & related documents
Series Description
The SDC 30-4 Series electric strike is designed for use with rim mount exit devices that have pullman type latch bolts or the top pullman latch of a surface vertical-rod exit device.
Kele Description
SS ELECTRIC STRIKE 24VDC DULL STAINLESS LL
Manufacturer
Security Door Controls
Related Documents
30-4 Datasheet x
