1582Y

1582Y | Security Door Controls | Access Control

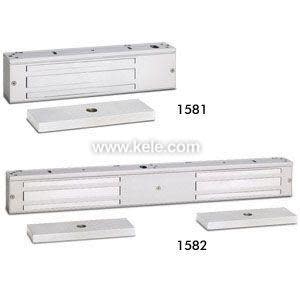

Magnetic Lock Surface Mount Double 650 Lb BA

Brand:Security Door Controls

MPN:1582Y

SKU:1582Y

List Price:

$2,439.00

Today's Price:

$1,268.28



(login for better pricing)

product specifications

Type

Magnetic Lock

Color

Black Anodized

Strike Style

Magnetic

Input

12/24 VDC

product series specifications

    Supply Voltage:
  • 12/24 VDC
    Supply Current:
    :
  • 1581 220mA @ 24VDC 440mA @ 12VDC
    :
  • 1582 440mA @ 24VDC; 880mA @ 12VDC
    Holding Force:
  • 650 lbs
    Dimensions:
    :
  • 1581 8.75"L x 2.1"H x 1.25"D
    :
  • (22.2 x 5.4 x 3.1 cm)
    :
  • 1582 17.5" L x 2.1" H x 1.25" D
    :
  • (44.4 x 5.4 x 3.1 cm)
    Weight:
    :
  • 1581 11 lbs (4.9 kg)
    :
  • 1582 26.4 lbs (11.9 kg)
    Approvals:
  • UL, CSFM (3774-0324:100), MEA Listed (61-95-E)
    Warranty:
  • 1 year

product series features

  • 650 lb holding force
  • Autosensing 12/24 VDC voltage input
  • ANSI/BHMA grade 1 compliant
  • BHMA certified holding force
  • Quick mount assembly

more information & related documents

Series Description

The 1580 Series is an ANSI grade 1 modular magnetic lock with 650 lb. holding force. They are field upgradeable and can be serviced without removing from the door frame. When power is removed the holding force is released.

Kele Description

MAG LOCK SURF MNT DOUBLE 650 LB BA

Manufacturer

Security Door Controls
