1573Y

1573Y | Security Door Controls | Access Control

Magnetic Lock Surface Mount Single 1200 Lb W/Split Arm BA

Brand:Security Door Controls

MPN:1573Y

SKU:1573Y

List Price:

$1,114.00

Today's Price:

$579.28



Availability: Usually Ships in Less Than 14 Business Days
Available Inventory
Lead times are estimates based on our Memphis location and subject to change without notice based on customer demand.

Need more?
Just order your desired quantity and we'll ship the available inventory immediately while we source the remaining quantity to get you all the products you need as soon as possible.

We can also reserve the available inventory and ship once we acquire the remaining quantity from the supplier. Just choose "Ship Complete" at checkout.

product specifications

Type

Magnetic Lock

Color

Black Anodized

Strike Style

Magnetic

Input

12/24 VDC

product series specifications

    Supply Voltage:
  • 12/24 VDC
    Supply Current:
    :
  • 1571, 1573 125mA @ 24VDC, 250mA @ 12VDC
    :
  • 1572 250mA @ 24VDC, 500mA @ 12VDC
    Holding Force:
  • 1200 lbs
    Dimensions:
    :
  • 1571, 1573 11"L x 2.75"H x 1.5"D
    :
  • (27.9 x 6.9 x 3.9 cm)
    :
  • 1572 22" L x 2.75" H x 1.5" D
    :
  • (55.8 x 6.9 x 3.9 cm)
    Weight:
    :
  • 1571, 1573 11 lbs (4.9 kg)
    :
  • 1572 26.4 lbs (11.9 kg)
    Approvals:
  • UL, CSFM (3774-0324:100), MEA Listed (61-95-E
    Warranty:
  • 1 year

product series features

  • 1200 lb holding force
  • Autosensing 12/24 VDC voltage input
  • ANSI/BHMA grade 1 compliant
  • BHMA certified holding force
  • Quick mount assembly

more information & related documents

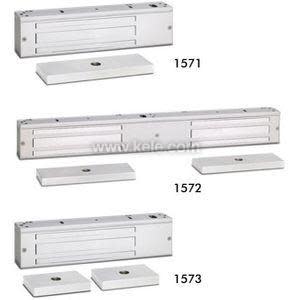

Series Description

The 1570 Series is an ANSI grade 1 modular magnetic lock, with 1200 lb. holding force. They are field upgradeable and can be serviced without removing from the door frame. When power is removed the holding force is released.

Kele Description

MAG LOCK SURF MNT SINGLE 1200 LB W/SPLIT ARM BA

Manufacturer

Security Door Controls
