1572V | Security Door Controls | Access Control
Double Emlock 1200Lb 12/24VDC 628
Brand:Security Door Controls
MPN:1572V
SKU:1572V
product specifications
Type
Magnetic Lock
Weight
2
Color
Aluminum
Strike Style
Magnetic
Input
12/24 VDC
product series specifications
- Supply Voltage:
- 12/24 VDC
- Supply Current:
- :
- 1571, 1573 125mA @ 24VDC, 250mA @ 12VDC
- :
- 1572 250mA @ 24VDC, 500mA @ 12VDC
- Holding Force:
- 1200 lbs
- Dimensions:
- :
- 1571, 1573 11"L x 2.75"H x 1.5"D
- :
- (27.9 x 6.9 x 3.9 cm)
- :
- 1572 22" L x 2.75" H x 1.5" D
- :
- (55.8 x 6.9 x 3.9 cm)
- Weight:
- :
- 1571, 1573 11 lbs (4.9 kg)
- :
- 1572 26.4 lbs (11.9 kg)
- Approvals:
- UL, CSFM (3774-0324:100), MEA Listed (61-95-E
- Warranty:
- 1 year
product series features
- 1200 lb holding force
- Autosensing 12/24 VDC voltage input
- ANSI/BHMA grade 1 compliant
- BHMA certified holding force
- Quick mount assembly
more information & related documents
Series Description

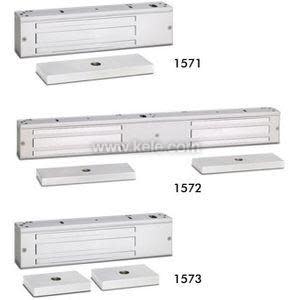

The 1570 Series is an ANSI grade 1 modular magnetic lock, with 1200 lb. holding force. They are field upgradeable and can be serviced without removing from the door frame. When power is removed the holding force is released.
Kele Description
DBL EMLOCK 1200LB 12/24VDC 628
Manufacturer
Security Door Controls
Related Documents
EMLocks 1500 Series Datasheet x
