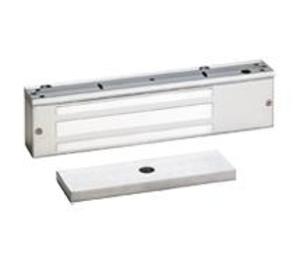

* product series image displayed
1571VD | Security Door Controls | Access Control
1571 EMLOCK 12/24VDC 628 DPS
Brand:Security Door Controls
MPN:1571VD
SKU:1571VD
product specifications
Type
Magnetic Lock
Color
Aluminum
Strike Style
Magnetic
Input
12/24 VDC
product series specifications
- Supply Voltage:
- 12/24 VDC
- Supply Current:
- :
- 1571, 1573 125mA @ 24VDC, 250mA @ 12VDC
- :
- 1572 250mA @ 24VDC, 500mA @ 12VDC
- Holding Force:
- 1200 lbs
- Dimensions:
- :
- 1571, 1573 11"L x 2.75"H x 1.5"D
- :
- (27.9 x 6.9 x 3.9 cm)
- :
- 1572 22" L x 2.75" H x 1.5" D
- :
- (55.8 x 6.9 x 3.9 cm)
- Weight:
- :
- 1571, 1573 11 lbs (4.9 kg)
- :
- 1572 26.4 lbs (11.9 kg)
- Approvals:
- UL, CSFM (3774-0324:100), MEA Listed (61-95-E
- Warranty:
- 1 year
product series features
- 1200 lb holding force
- Autosensing 12/24 VDC voltage input
- ANSI/BHMA grade 1 compliant
- BHMA certified holding force
- Quick mount assembly
more information & related documents
Series Description
The 1570 Series is an ANSI grade 1 modular magnetic lock, with 1200 lb. holding force. They are field upgradeable and can be serviced without removing from the door frame. When power is removed the holding force is released.
Kele Description
1571 EMLOCK 12/24VDC 628 DPS
Manufacturer
Security Door Controls
