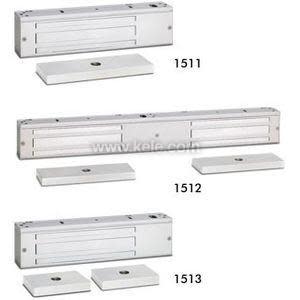

1513X | Security Door Controls | Access Control
Magnetic Lock Surface Mount Single 1650 Lb W/Split Arm DB
Brand:Security Door Controls
MPN:1513X
SKU:1513X
product specifications
Type
Magnetic Lock
Weight
26.5
Color
Dark Bronze Powder Coat
Strike Style
Magnetic
Input
12/24 VDC
product series specifications
- Supply Voltage:
- 12/24 VDC
- Supply Current:
- :
- 1511, 1513 350 mA at 24 VDC 670 mA at 12 VDC
- :
- 1512 700 mA at 24 VDC 1.3 A at 12 VDC
- Holding Force:
- 1650 lbs
- Dimensions:
- :
- 1511, 1513 11" L x 2.75" H x 1.56" D
- :
- (27.9 x 6.9 x 3.9 cm)
- :
- 1512 22" L x 2-3/4" H x 1.56" D
- :
- (55.8 x 6.9 x 3.9 cm)
- Weight:
- :
- 1511, 1513 11 lbs (4.9 kg)
- :
- 1512 26.4 lbs (11.9 kg)
- Approvals:
- UL, CSFM (3774-0324:100), MEA Listed (61-95-E)
- Warranty:
- 1 year
product series features
- 1650 lb holding force
- Autosensing 12/24 VDC voltage input
- ANSI/BHMA grade 1 compliant
- BHMA certified holding force
- Quick mount assembly
more information & related documents
Series Description
The 1510 Series is an ANSI grade 1 modular magnetic lock with 1650 lb. holding force. They are field upgradeable and can be serviced without removing from the door frame. When power is removed the holding force is released.
Kele Description
MAG LOCK SURF MNT SINGLE 1650 LB W/SPLIT ARM DB
Manufacturer
Security Door Controls
Related Documents
EMLocks 1500 Series Datasheet x
