1511X | Security Door Controls | Access Control

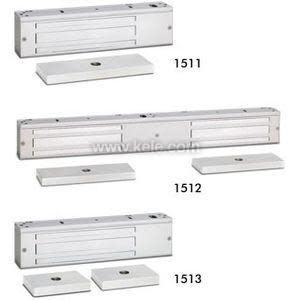

Single Emlock 1650Lb 12/24VDC 313 Dark Bronze

Brand:Security Door Controls

MPN:1511X

SKU:1511X

List Price:

$1,706.00

Today's Price:

$887.12



product specifications

Type

Magnetic Lock

Color

Oil Rubbed Broze

Strike Style

Magnetic

Input

12/24 VDC

product series specifications

    Supply Voltage:
  • 12/24 VDC
    Supply Current:
    :
  • 1511, 1513 350 mA at 24 VDC 670 mA at 12 VDC
    :
  • 1512 700 mA at 24 VDC 1.3 A at 12 VDC
    Holding Force:
  • 1650 lbs
    Dimensions:
    :
  • 1511, 1513 11" L x 2.75" H x 1.56" D
    :
  • (27.9 x 6.9 x 3.9 cm)
    :
  • 1512 22" L x 2-3/4" H x 1.56" D
    :
  • (55.8 x 6.9 x 3.9 cm)
    Weight:
    :
  • 1511, 1513 11 lbs (4.9 kg)
    :
  • 1512 26.4 lbs (11.9 kg)
    Approvals:
  • UL, CSFM (3774-0324:100), MEA Listed (61-95-E)
    Warranty:
  • 1 year

product series features

  • 1650 lb holding force
  • Autosensing 12/24 VDC voltage input
  • ANSI/BHMA grade 1 compliant
  • BHMA certified holding force
  • Quick mount assembly

more information & related documents

Series Description

The 1510 Series is an ANSI grade 1 modular magnetic lock with 1650 lb. holding force. They are field upgradeable and can be serviced without removing from the door frame. When power is removed the holding force is released.

Kele Description

SNGL EMLOCK 1650LB 12/24VDC 313 DARK BRONZE

Manufacturer

Security Door Controls
