EZ-D-10

EZ-D-10 | Security Door Controls | Access Control

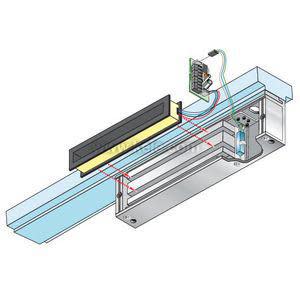

1510 & 1570 Door Sensor

Brand:Security Door Controls

MPN:EZ-D-10

SKU:EZ-D-10

List Price:

$134.00

Today's Price:

$69.68



(login for better pricing)
Lead time of > 15 days. See alternatives below orChat with Kele experts now

product specifications

Type

Sensor

Strike Style

Door Position

product series specifications

    Supply Voltage:
  • 12/24 VDC
    Supply Current:
    :
  • 1511, 1513 350 mA at 24 VDC 670 mA at 12 VDC
    :
  • 1512 700 mA at 24 VDC 1.3 A at 12 VDC
    Holding Force:
  • 1650 lbs
    Dimensions:
    :
  • 1511, 1513 11" L x 2.75" H x 1.56" D
    :
  • (27.9 x 6.9 x 3.9 cm)
    :
  • 1512 22" L x 2-3/4" H x 1.56" D
    :
  • (55.8 x 6.9 x 3.9 cm)
    Weight:
    :
  • 1511, 1513 11 lbs (4.9 kg)
    :
  • 1512 26.4 lbs (11.9 kg)
    Approvals:
  • UL, CSFM (3774-0324:100), MEA Listed (61-95-E)
    Warranty:
  • 1 year

product series features

  • 1650 lb holding force
  • Autosensing 12/24 VDC voltage input
  • ANSI/BHMA grade 1 compliant
  • BHMA certified holding force
  • Quick mount assembly

more information & related documents

Series Description

The 1510 Series is an ANSI grade 1 modular magnetic lock with 1650 lb. holding force. They are field upgradeable and can be serviced without removing from the door frame. When power is removed the holding force is released.

Kele Description

1510 & 1570 DR SENSOR

Manufacturer

Security Door Controls
