AB04V | Security Door Controls | Access Control

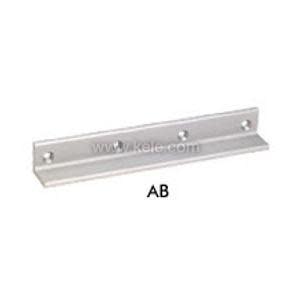

1 1/2 X1 1/2 X 8 3/4 Abracket 628
Brand:Security Door Controls
MPN:AB04V
SKU:AB04V
product specifications
Type
Brackets
Color
Aluminum
product series specifications
- Supply Voltage:
- 12/24 VDC
- Supply Current:
- :
- 1581 220mA @ 24VDC 440mA @ 12VDC
- :
- 1582 440mA @ 24VDC; 880mA @ 12VDC
- Holding Force:
- 650 lbs
- Dimensions:
- :
- 1581 8.75"L x 2.1"H x 1.25"D
- :
- (22.2 x 5.4 x 3.1 cm)
- :
- 1582 17.5" L x 2.1" H x 1.25" D
- :
- (44.4 x 5.4 x 3.1 cm)
- Weight:
- :
- 1581 11 lbs (4.9 kg)
- :
- 1582 26.4 lbs (11.9 kg)
- Approvals:
- UL, CSFM (3774-0324:100), MEA Listed (61-95-E)
- Warranty:
- 1 year
product series features
- 650 lb holding force
- Autosensing 12/24 VDC voltage input
- ANSI/BHMA grade 1 compliant
- BHMA certified holding force
- Quick mount assembly
more information & related documents
Series Description
The 1580 Series is an ANSI grade 1 modular magnetic lock with 650 lb. holding force. They are field upgradeable and can be serviced without removing from the door frame. When power is removed the holding force is released.
Kele Description
1 1/2 X1 1/2 X 8 3/4 ABRKT 628
Manufacturer
Security Door Controls
Related Documents
