918U | Security Door Controls | Access Control

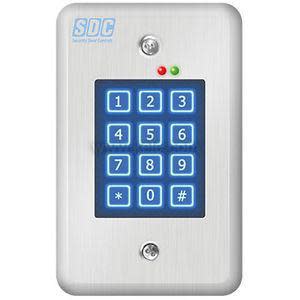

Entry Check Keypad

Brand:Security Door Controls



List Price:


Today's Price:


Availability: 1 In Stock
Available Inventory
These numbers are estimates based on our Memphis location and subject to change without notice based on customer demand.

Need more?
Just order your desired quantity and we'll ship the available inventory immediately while we source the remaining quantity to get you all the products you need as soon as possible.

We can also reserve the available inventory and ship once we acquire the remaining quantity from the supplier. Just choose "Ship Complete" at checkout.

product series specifications

    Supply Voltage:
  • 12/24 VDC or VAC
  • 10mA typical, 150mA maximum
    Contact Rating:
  • Relay 1 Form ‚ÄúC‚Äù, 5 Amps @ 24VDC
  • Relay 2 Form ‚ÄúC‚Äù, 1 Amps @ 24VDC
  • Outputs 3 & 4 Switch to common, 100mA @ 30VDC
    Operating Temperature:
  • -20° to 130°F (-30° to 54°C)
    Operating Humidity:
  • 5 to 95% (non-condensing)
  • 3‚Ä=W x 5‚Ä=H x 3‚Ä=D (7.6 x 12.7 x 7.6 cm)
    Weight :
  • 2.5 lb (1.13 kg)
  • 1 year

product series features

  • 500 Users, 1-6 digit PIN codes
  • 4 outputs, 2 relay and 2 solid state outputs timed or latching (on/off)
  • Assign entry PIN's to relays 1 and/or 2
  • LED Status: Access, lockout
  • Tactile keys with selectable audible volume for key depression or output activation
  • Timed anti-passback
  • Keypad tamper lockout
  • Request-to-Exit/Enter input

more information & related documents

Series Description

The SDC 918 and 920 EntryCheck™ are stand alone digital keypads designed to control access of a single entry point for facilities with up to 500 users. Each user is assigned a personal identification number (PIN). Keypad entry of a valid one to six digit code activates one or both of the output relays which releases an electric door lock.

Kele Description



Security Door Controls
