PDITR-BOS8USD-04 | Distech Controls | Thermostats & Controllers

EC-BOS-8 microSD card. It is included with purchase of standard EC-BOS-8 unit. Only purchase this part if original microSD card was lost or damaged and not covered under warranty. Note: Compatible with EC-Net 4.9.1 and higher. Contact Distech Controls if you require compatibility with an older version of EC-Net 4

Brand:Distech Controls

MPN:PDITR-BOS8USD-04

SKU:PDITR-BOS8USD-04

Call our Boston Branch for pricing 781.335.8353

product series features

Scalable licensing model and modular hardware make the ECBOS-8 suitable for installation in small buildings, as well as large multi-unit campuses when combined with EC-Net Supervisor
Integrates many communication protocols and automation systems including HVAC, lighting, energy, fire & smoke, physical access, video and industrial/processing
Two on-board isolated RS-485 ports for connecting to various common networks, e.g. BACnet MS/TP, Modbus RTU, Wiegand access control devices
Option modules for additional physical network connections, e.g. LONWORKS© FTT-10A, RS-232, RS-485, and Wiegand access readers
USB type A port for station backup and restore functions

more information & related documents

Series Description

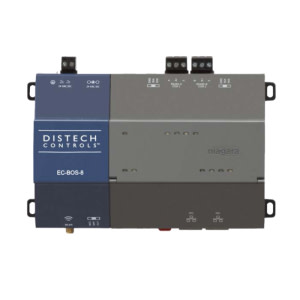

The EC-BOS-8 is a compact, embedded controller and server platform for connecting multiple and diverse devices and sub-systems. With Internet connectivity and Webserving capability, the EC‑BOS‑8 provides integrated control, supervision, data logging, alarming, scheduling and network management. It streams data and graphical displays to a standard Web browser via an Ethernet or wireless LAN, or remotely over the Internet. The EC-BOS-8 operates with EC-NetTM  web-based building management platform powered by the Niagara Framework®. The EC-BOS-8 can also run EC-Net Access for managing access control systems.

Kele Description

EC-BOS-8 REPLACEMENT MICROSD CARD

Manufacturer

Distech Controls
