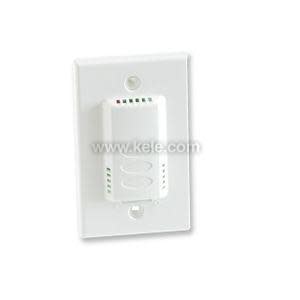

White plastic wall plate with a rectangular sensor module featuring vent slots and small colored indicators.

TEH50U | Veris | Temperature Sensors & Transmitters

Wall Econ 10K T3 Thermistor 10K Set Pt Override USA

Brand:Veris

MPN:TEH50U

SKU:TEH50U

List Price:

$86.00

Today's Price:

$44.72

product datasheet

installation instructions

Lead time of 10 days. Chat with Kele experts now

product specifications

Type

Thermistor

Probe Length

None

Sensor Element

10K Type 3 Thermistor

Display

Setpoint

Yes

Application

Room Temperature,Classroom Temperature,Office Temperature,Washdown Environment,Duct Temperature,Immersion Temperature,Outside Air Temperature,OSA

Output Signal

Resistance

product series specifications

Supply Voltage: 12 to 30 VDC @ 30 mA (current model only) : 12-30 VDC @ 15 mA, 24 VAC @ 0.4 VA (voltage models only)

Accuracy: Thermistor: 2.2k, 3k, 20k, 100k: ±0.11° (0.2°) 10k Type 2 & 3: ± 0.06° (0.1°)

RTD: 100, 100 385 curve: ±0.17° (0.3°)

Analog: ±1° (±0.5°)

Sensor Type: Thermistor: 2.2kΩ, 3kΩ, 10kΩ Type 2 & 3, 20kΩ, 100kΩ

RTD: 100Ω, Pt 385 Curve; 1000Ω, Pt 385 Curve

Temperature Range: Thermistor/RTD: -13° to 221°F (-25° to 105°C)

Analog: 50° to 95°F (10° to 35°C)

Output (analog models): 4- 20 mA @ 500Ω, 0-5/10 VDC

Temperature Coefficient: Thermistor: Negative temperature coefficient RTD: Positive temperature coefficient

Mounting: Directly to Wall Wiring Terminations: 22 AWG pigtails; 3' to 5' (0.91 -1.52 m)

Enclosure: White plastic Weight: 0.2 lb (0.09 Kg)

Warranty: 5 year

more information & related documents

Series Description

The Veris TE & TW Series Economy Wall Thermistor and RTD Sensor provides precision room temperature sensing for building automation system. The sensing element is made of a highly stable, precision thermistor material or platinum RTD. Besides a variety of Thermistor and RTD types, one can also have 1K or 10K ohm Setpoint with or without override.

Kele Description

WALL ECON 10K T3 THMS 10K SET PT OVERRIDE USA

Manufacturer

Veris
