TEH30 | Veris | Temperature Sensors & Transmitters

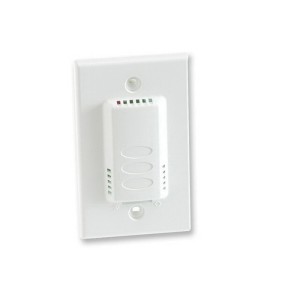

Wall temperature sensor, 10k Ω type 3 thermistor, 10k Ω setpoint slider.
Brand:Veris
MPN:TEH30
SKU:TEH30
List Price:
$64.00
Today's Price:
$33.28
Log in for customized pricingproduct specifications
Type
Thermistor
Probe Length
None
Sensor Element
10K Type 3 Thermistor
Display
No
Setpoint
Yes
Enclosure Rating
NEMA 1
Application
Room Temperature,Classroom Temperature,Office Temperature,Washdown Environment,Duct Temperature,Immersion Temperature,Outside Air Temperature,OSA
Output Signal
Resistance
product series specifications
Supply Voltage: 12 to 30 VDC @ 30 mA (current model only) : 12-30 VDC @ 15 mA, 24 VAC @ 0.4 VA (voltage models only)
Accuracy: Thermistor: 2.2k, 3k, 20k, 100k: ±0.11° (0.2°) 10k Type 2 & 3: ± 0.06° (0.1°)
RTD: 100, 100 385 curve: ±0.17° (0.3°)
Analog: ±1° (±0.5°)
Sensor Type: Thermistor: 2.2kΩ, 3kΩ, 10kΩ Type 2 & 3, 20kΩ, 100kΩ
RTD: 100Ω, Pt 385 Curve; 1000Ω, Pt 385 Curve
Temperature Range: Thermistor/RTD: -13° to 221°F (-25° to 105°C)
Analog: 50° to 95°F (10° to 35°C)
Output (analog models): 4- 20 mA @ 500Ω, 0-5/10 VDC
Temperature Coefficient: Thermistor: Negative temperature coefficient RTD: Positive temperature coefficient
Mounting: Directly to Wall Wiring Terminations: 22 AWG pigtails; 3' to 5' (0.91 -1.52 m)
Enclosure: White plastic Weight: 0.2 lb (0.09 Kg)
Warranty: 5 year
more information & related documents
Series Description
The Veris TE & TW Series Economy Wall Thermistor and RTD Sensor provides precision room temperature sensing for building automation system. The sensing element is made of a highly stable, precision thermistor material or platinum RTD. Besides a variety of Thermistor and RTD types, one can also have 1K or 10K ohm Setpoint with or without override.
Kele Description
WALL ECON 10K T3 THMS 10K SET PT
Manufacturer
Veris
TE Series installation Manual
