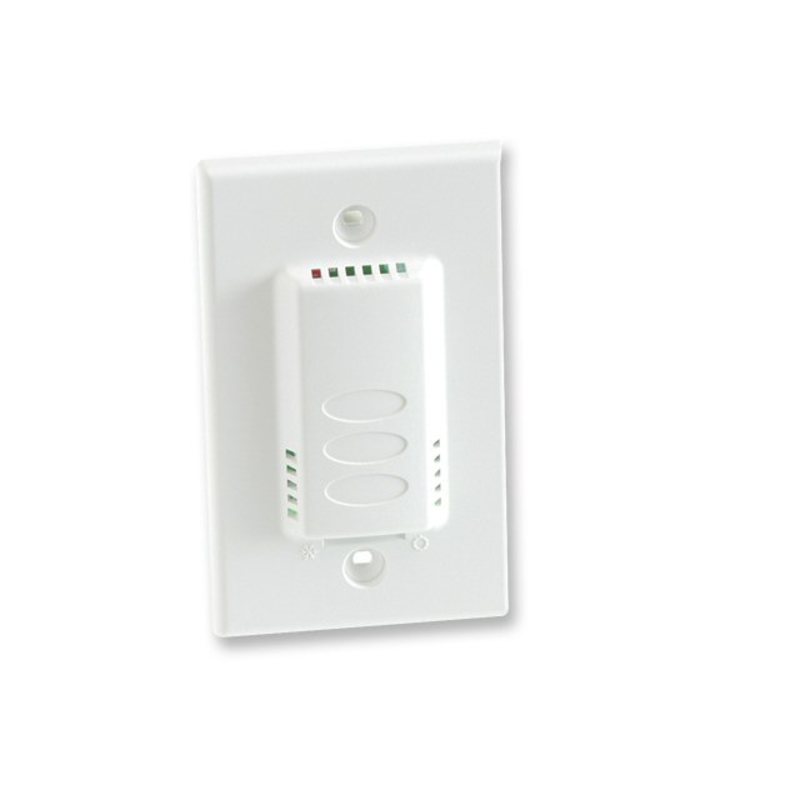

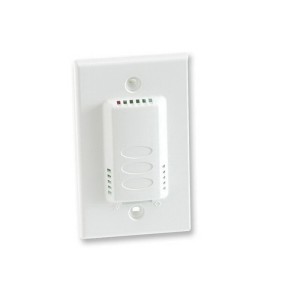

White wall plate featuring a raised sensor module with three oval indents, vent slots and red and green LEDs

TEC20 | Veris | Temperature Sensors & Transmitters

Wall temperature sensor, 1000 Ω platinum RTD, 1000 Ω setpoint slider.

Brand:Veris

MPN:TEC20

SKU:TEC20

List Price:

$64.00

Today's Price:

$33.28

product datasheet

installation instructions

Lead time of 12 days. Chat with Kele experts now

product specifications

Type

RTD

Sensor Element

1K Ohm Platinum RTD 385

Display

Setpoint

Yes

Application

Room Temperature,Classroom Temperature,Office Temperature,Washdown Environment,Duct Temperature,Immersion Temperature,Outside Air Temperature,OSA

product series specifications

Supply Voltage: 12 to 30 VDC @ 30 mA (current model only) : 12-30 VDC @ 15 mA, 24 VAC @ 0.4 VA (voltage models only)

Accuracy: Thermistor: 2.2k, 3k, 20k, 100k: ±0.11° (0.2°) 10k Type 2 & 3: ± 0.06° (0.1°)

RTD: 100, 100 385 curve: ±0.17° (0.3°)

Analog: ±1° (±0.5°)

Sensor Type: Thermistor: 2.2kΩ, 3kΩ, 10kΩ Type 2 & 3, 20kΩ, 100kΩ

RTD: 100Ω, Pt 385 Curve; 1000Ω, Pt 385 Curve

Temperature Range: Thermistor/RTD: -13° to 221°F (-25° to 105°C)

Analog: 50° to 95°F (10° to 35°C)

Output (analog models): 4- 20 mA @ 500Ω, 0-5/10 VDC

Temperature Coefficient: Thermistor: Negative temperature coefficient RTD: Positive temperature coefficient

Mounting: Directly to Wall Wiring Terminations: 22 AWG pigtails; 3' to 5' (0.91 -1.52 m)

Enclosure: White plastic Weight: 0.2 lb (0.09 Kg)

Warranty: 5 year

more information & related documents

Series Description

The Veris TE & TW Series Economy Wall Thermistor and RTD Sensor provides precision room temperature sensing for building automation system. The sensing element is made of a highly stable, precision thermistor material or platinum RTD. Besides a variety of Thermistor and RTD types, one can also have 1K or 10K ohm Setpoint with or without override.

Kele Description

WALL ECON 1K OHM 385 RTD 1K SET PT

Manufacturer

Veris
