TE-205-G-12 | MAMAC Systems | Temperature Sensors & Transmitters
SPACE TEMP SENSOR 10K OHM WITHOUT ENCLOSURE
Brand:MAMAC Systems
MPN:TE-205-G-12
SKU:TE-205-G-12
List Price:
$23.69
Today's Price:
$12.32
Log in for customized pricingproduct specifications
Type
Thermistor
Probe Length
None
Sensor Element
10K Type 2 Thermistor
Display
No
Setpoint
No
Enclosure Rating
NEMA 1
Application
Room Temperature,Classroom Temperature,Office Temperature,Washdown Environment,Duct Temperature,Immersion Temperature,Outside Air Temperature,OSA
Output Signal
Resistance
product series specifications
Accuracy:
Thermistor: ±0.36°F (0.2°C)
RTD:
100Ω & 1000Ω: 0.1%
1000Ω Nickel: 0.5°F
1000Ω Balco: 0.5°F
Sensor Type:
Thermistor: 3 kΩ, 10 kΩ Type II & III, 20 kΩ, 100kΩ
RTD: 100Ω & 1000Ω Platinum 385 Curve, 1000Ω Nickel, 1000Ω Balco
Temperature Range Thermistor/RTD: -40° to 210°F (-40° to 100°C)
Temperature Coefficient:
Thermistor: Negative temperature coefficient
RTD: Positive temperature coefficient
Enclosure: White plastic with aluminum plate
Mounting: Directly to wall or BKT-1 bracket to mount to single gang box
Wiring Terminations: 4.5" (13 cm) of 22 AWG pigtails
Weight: 0.2 lb (0.1 kg)
Approvals: CE, RoHs
Warranty: 1 year
product series features
- ±0.36 degrees F (0.2 degrees C) thermistor accuracy
- ±0.27 degrees F (0.15 degrees C) or ±0.54 degrees F (0.30 degrees C) RTD accuracy
- Wide selection of thermistor and RTD curves
- Vented housing for quick temperature response
- Durable plastic housing and base plate
- Easy to mount to wall or back box
more information & related documents
Series Description

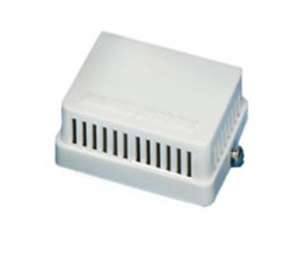

The MAMAC Model TE205A Surface-Mount Room Thermistor and RTD Sensor provides precision room temperature sensing for building automation systems. The active sensing element is made of a highly stable, precision thermistor material or platinum RTD.
Kele Description
SPACE TEMP SENSOR 10K OHM WITHOUT ENCLOSURE
Manufacturer
MAMAC Systems
Related Documents
TE205 Datasheet
