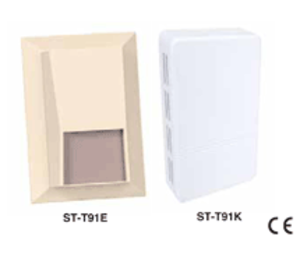

The Kele ST-T91 Rangeable Platinum Room Temperature Transmitter Series provides stable, accurate room sensing for temperature control and building automation systems, and it is CE approved for level-one applications. The attractive vented housing mounts easily and is constructed of a durable plastic with a tan enameled aluminum faceplate. The ST-T91E is the Executive style room transmitter and the ST-T91K is the Design style room transmitter. The ST-T91 Series has a loop-powered 4-20 mA output with a standard temperature range of 40 degrees to 90 degrees F (4 degrees to 32 degrees C), although other ranges can be field calibrated between -30 degrees to 250 degrees F (-34 degrees to 121 degrees C). To adjust the ST-T91 Series, set the DIP switches to match the desired range, and use the zero and span pots to fine tune. A high accuracy digital ohmmeter and decade box are required. The ST-T91 Series has a special 20 mA loop calibration test signal to provide easy system verification. Simply move the bottle plug jumper from norm to 20, and the transmitter will output a constant 20 mA. The loop up LED provides power indication for the 4-20 mA output.
