DCI/1KDIB4SOC8 | BAPI | Temperature Sensors & Transmitters
WALL DORSETT LOGO BS4 1K O/R SPO-400OHMS RJ45 JACK
Manufacturer:BAPI
MPN:DCI/1KDIB4SOC8
SKU:DCI/1KDIB4SOC8
List Price:
$1,165.75
Today's Price:
$582.88
product family specifications
Accuracy
Thermistor
±0.36℉ (0.2℃)
RTD
385 Curve
±0.27℉ (0.15℃)
375 Curve
±0.54℉ (0.30℃)
Sensor Type
Thermmistor
10 kΩ Type II & III
RTD
100Ω, 1000Ω, 385 curve; 1000Ω, 375 curve
Temperature Range
32° to 158°F (-0° to 70°C)
Stability
Thermistor
RTD
0.14 °C with 6,000 continuous hours at 400 °C
Heat Dissipation
2.7 mW/°C (power need to raise the temperature 1C), 0.4°C/mW at 0°C
Enclosure Rating
NEMA 1, ABS plastic, UL94V-0
Mounting
Directly to wall or single gang box
Wiring Terminations
Terminals
Weight
0.25 lb (0.1 Kg)
Approvals
CE, RoHS
Warranty
Lifetime
product family features
- ±0.36℉ (±0.2℃) Thermistor accuracy
- ±0.27℉ (±0.15℃) or ±0.54℉ (±0.30 RTD℃) RTD accuracy
- ±2.7℉ (±1.5℃) semiconductor accuracy
- Lifetime limited sensor warranty
- Wide selection of thermistor, RTD, and semiconductor curves
more information & related documents
Family Description

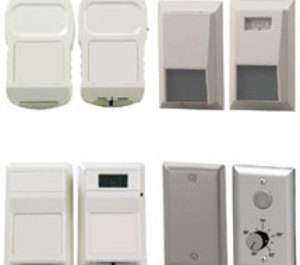

The BA Series Room Sensors are designed specifically for HVAC applications. The room sensors come in a variety of enclosure styles, including Delta, PreCon, stainless steel plate, and BAPIstat II. Each room sensor is available with thermistor, RTD, and semiconductor sensors, which makes the BA sensors compatible with every Building Automation Systems, BAS, in use today.
Kele Description
WALL DORSETT LOGO BS4 1K O/R SPO-400OHMS RJ45 JACK
Manufacturer
BAPI
