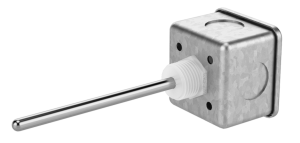

BA/1K375-I-6 | BAPI | Temperature Sensors & Transmitters

TEMP SENSOR, IMMERS, 1K RTD 375, 6.00" PROBE

Brand:BAPI

MPN:BA/1K375-I-6

SKU:BA/1K375-I-6

List Price:

$37.64

Today's Price:

$19.57



(login for better pricing)
Lead time of 13 days. Chat with Kele experts now

product specifications

Housing Rating

None

Output

Resistance

Probe Length

6 in

Sensor Element

1K Platinum RTD 375

Type

RTD

product series specifications

Accuracy: Thermistor: ±0.36°F (0.2°C); RTD: ±0.55°F (0.30°C)

Sensor Type: Thermistor: 10 k? Type II & III; RTD: 100?, 1000?, 385 curve; 1000?, 375 curve

Temperature Range: 32° to 158°F (-0° to 70°C)

Stability: Thermistor: <0.036°F (0.02°C) per year; RTD: 0.14°C with 6,000 continuous hours at 400°C

Heat Dissipation: 2.7 mW/°C (power need to raise the temperature 1°C), 0.4°C/mW at 0°C

Enclosure Rating:

JB: NEMA 1, 2" x 4" J-box with 1/2" knockouts

BB: BB2: BB4: NEMA 1, BAPI Box 4- IP20 nylon & plastic

WP: NEMA 3R Aluminum

Mounting: Directly to pipe

Wiring Terminations: 22 AWG wire, etched teflon leads

Weight: I2: 0.65 lb (0.29 Kg) I4 & I8: 0.8 lb (0.36 Kg)

Approvals: CE, RoHS

Warranty: Lifetime

product series features

  • Several enclosure styles with mounting tabs
  • Probe lengths: 2 in, 4 in and 8 in
  • Lifetime limited sensor warranty

more information & related documents

Series Description

The BAPI BA Series Thermistor and RTD Immersion Sensors are designed specifically for HVAC systems. They come in thermistor and RTD sensors and feature double encapsulated sensor etched Teflon leadwires to create a watertight package that can perform in the real world.

Kele Description

TEMP SENSOR, IMMERS, 1K RTD 375, 6.00" PROBE
