BA/10K-3-I-2-SS-BB2O | BAPI | Temperature Sensors & Transmitters

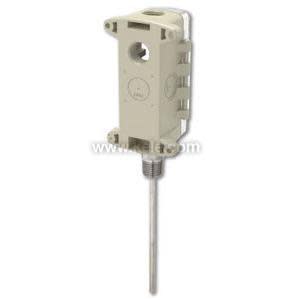

Immersion Temperature Sensor, 10K Type III, 2 Probe, Stainless Steel Fitting, BAPI Box 2 Enclosure, IP66 Rated, UV Resistant Polycarbonate, Outside Mount
Brand:BAPI
MPN:BA/10K-3-I-2-SS-BB2O
SKU:BA/10K3I2SSBB2O
product specifications
Accessory
T81U-XR, T85U-XR, TCC-111, TCC-12, UR
Feature
Stainless Steel Well
Application
Hydronic HVAC
Housing Material
Poly
Housing Rating
NEMA 4, IP66
Output
Resistance
Probe Length
2 in
Sensor Element
10K Type 3 Thermistor
Type
Thermistor
product series specifications
Accuracy: Thermistor: ±0.36°F (0.2°C); RTD: ±0.55°F (0.30°C)
Sensor Type: Thermistor: 10 k? Type II & III; RTD: 100?, 1000?, 385 curve; 1000?, 375 curve
Temperature Range: 32° to 158°F (-0° to 70°C)
Stability: Thermistor: <0.036°F (0.02°C) per year; RTD: 0.14°C with 6,000 continuous hours at 400°C
Heat Dissipation: 2.7 mW/°C (power need to raise the temperature 1°C), 0.4°C/mW at 0°C
Enclosure Rating:
JB: NEMA 1, 2" x 4" J-box with 1/2" knockouts
BB: BB2: BB4: NEMA 1, BAPI Box 4- IP20 nylon & plastic
WP: NEMA 3R Aluminum
Mounting: Directly to pipe
Wiring Terminations: 22 AWG wire, etched teflon leads
Weight: I2: 0.65 lb (0.29 Kg) I4 & I8: 0.8 lb (0.36 Kg)
Approvals: CE, RoHS
Warranty: Lifetime
product series features
- Several enclosure styles with mounting tabs
- Probe lengths: 2 in, 4 in and 8 in
- Lifetime limited sensor warranty
more information & related documents
Series Description
The BAPI BA Series Thermistor and RTD Immersion Sensors are designed specifically for HVAC systems. They come in thermistor and RTD sensors and feature double encapsulated sensor etched Teflon leadwires to create a watertight package that can perform in the real world.
Kele Description
TEMP SENSOR, IMMERS, 10K TYPE III, 2.00" PROBE, POLY ENCL
Manufacturer
BAPI
