BA/10K-2-I-4-BB4 | BAPI | Temperature Sensors & Transmitters

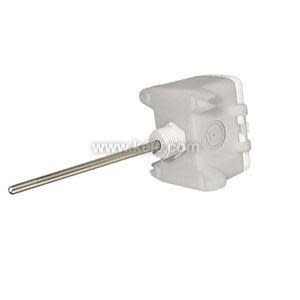

Immersion Temperature Sensor, 10K Type II Thermistor, 4 Probe, BAPI-BOX 4 Plastic Enclosure, IP10 Rated Nylon (IP44 Rated with Knockout Plug in the Open Port)

Brand:BAPI

MPN:BA/10K-2-I-4-BB4

SKU:BA/10K2-I-4BB4

List Price:

$34.50

Today's Price:

$17.94



product specifications

Accessory

T81U-XR, T85U-XR, TCC-111, TCC-12, UR

Feature

Stainless Steel Well

Application

Hydronic HVAC

Housing Material

Poly

Housing Rating

NEMA 3R, IP10, IP44

Output

Resistance

Probe Length

4 in

Sensor Element

10K Type 2 Thermistor

Type

Thermistor

product series specifications

Accuracy: Thermistor: ±0.36°F (0.2°C); RTD: ±0.55°F (0.30°C)

Sensor Type: Thermistor: 10 k? Type II & III; RTD: 100?, 1000?, 385 curve; 1000?, 375 curve

Temperature Range: 32° to 158°F (-0° to 70°C)

Stability: Thermistor: <0.036°F (0.02°C) per year; RTD: 0.14°C with 6,000 continuous hours at 400°C

Heat Dissipation: 2.7 mW/°C (power need to raise the temperature 1°C), 0.4°C/mW at 0°C

Enclosure Rating:

JB: NEMA 1, 2" x 4" J-box with 1/2" knockouts

BB: BB2: BB4: NEMA 1, BAPI Box 4- IP20 nylon & plastic

WP: NEMA 3R Aluminum

Mounting: Directly to pipe

Wiring Terminations: 22 AWG wire, etched teflon leads

Weight: I2: 0.65 lb (0.29 Kg) I4 & I8: 0.8 lb (0.36 Kg)

Approvals: CE, RoHS

Warranty: Lifetime

product series features

  • Several enclosure styles with mounting tabs
  • Probe lengths: 2 in, 4 in and 8 in
  • Lifetime limited sensor warranty

more information & related documents

Series Description

The BAPI BA Series Thermistor and RTD Immersion Sensors are designed specifically for HVAC systems. They come in thermistor and RTD sensors and feature double encapsulated sensor etched Teflon leadwires to create a watertight package that can perform in the real world.

Kele Description

TEMP SENSOR, IMMERS, 10K TYPE II, 4.00" PROBE, POLY ENCL

Manufacturer

BAPI
