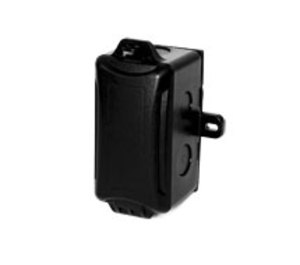

* product series image displayed

A/TT1K-30TO500-HT-I-2.5-GD | ACI | Temperature Sensors & Transmitters

-30 to 500 degree immersion w/well

Brand:ACI

MPN:A/TT1K-30TO500-HT-I-2.5-GD

SKU:A/TT1K-30TO500-HT-I-2.5-GD

List Price:

$457.00

Today's Price:

$237.64



(login for better pricing)
Lead time of 8 days. Chat with Kele experts now

product specifications

Housing Material

Metallic

Housing Rating

NEMA 1

Output

4 - 20 mA

Probe Length

2.50 in

Sensor Element

1K Platinum RTD 385

Type

RTD

product series specifications

Accuracy:

Thermistor: ±0.36°F (0.2°C)

RTD: ±0.50°F (0.28°C)

Sensor Type:

Thermistor: 10 kO Type II & III, 20 kO

RTD: 100O, 1000O 385 curve

Temperature Range: -40° to 275°F (-40° to 135°C)

Stability:

Thermistor: 0.24°F (0.13°C) over five years

RTD: <±0.1°C drift

Heat Dissipation: Thermistor, 3 mW/°C (power needed to raise the temperature by 1°C)

Measurement Range: -40° to 302°F (-40° to 150°C)

Enclosure Rating: NEMA 3R, Plastic Box

Wiring Terminations: 10 pairs of 22 AWG wire

Probe: Seamless Stainless steel tube, 1/4" (0.64 cm) O.D.

Dimensions: less probe 4.5"W x 2.3"H x 2.3"D (11.4 x 5.8 x 5.8 cm)

Weight: Duct: 0.72 lb (0.32 Kg)

Immersion: 1.0 lb (0.45 Kg)

Approvals: CE, RoHS

Warranty: 5 years

product series features

  • 5 year warranty
  • Selection of thermistors and RTDs
  • Immersion and duct applications

more information & related documents

Series Description

The ACI Plastic Box Series Thermistor and RTD Sensors are designed specifically for HVAC system temperature control. The A/*PB duct and immersion sensors come in thermistor and RTD sensor curves compatible with most BAS systems available today.

Kele Description

-30 to 500 degree immersion w/well

Manufacturer

ACI
