A/100-2W-INW-2.5"-PB | ACI | Temperature Sensors & Transmitters

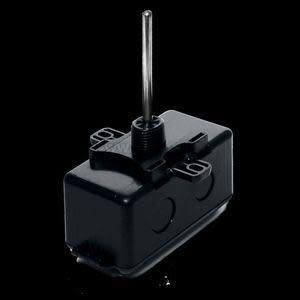

Platinum RTD, Immersion No Well, 100 Ω RTD (2-wire), 2.5", Plastic Box

Brand:ACI

MPN:A/100-2W-INW-2.5"-PB

SKU:A/1002WINW2.5PB

List Price:

$77.00

Today's Price:

$40.04

Lead time of 6 days. Chat with Kele experts now

product specifications

Type

RTD

Housing Material

Poly

Probe Length

2.50 in

Sensor Element

100 Ohm Platinum RTD 385

Enclosure Rating

NEMA 3R

Accessory

TT100-0100-BO-1,TT100-0100-BO-2,TT100-0100-BO-4,TT1K-0100-BO-1,TT1K-0100-BO-2,TT1K-0100-BO-4,UR,F-1000-331

Application

Hydronic HVAC,Chiller Plant

Output Signal

Resistance

product series specifications

Accuracy:

Thermistor: ±0.36°F (0.2°C)

RTD: ±0.50°F (0.28°C)

Sensor Type:

Thermistor: 10 kΩ Type II & III, 20 kΩ

RTD: 100Ω, 1000Ω 385 curve

Temperature Range: -40° to 275°F (-40° to 135°C)

Stability:

Thermistor: 0.24°F (0.13°C) over five years

RTD: <±0.1°C drift

Heat Dissipation: Thermistor, 3 mW/°C (power needed to raise the temperature by 1°C)

Measurement Range: -40° to 302°F (-40° to 150°C)

Enclosure Rating: NEMA 1, Plastic Box

Wiring Terminations: 10 pairs of 22 AWG wire

Probe: Seamless Stainless steel tube, 1/4" (0.64 cm) O.D.

Dimensions: less probe 4.5"W x 2.3"H x 2.3"D (11.4 x 5.8 x 5.8 cm)

Weight: Duct: 0.72 lb (0.32 Kg)

Immersion: 1.0 lb (0.45 Kg)

Approvals: CE, RoHS

Warranty: 5 years

product series features

  • 5 year warranty
  • Selection of thermistors and RTDs
  • Immersion and duct applications

more information & related documents

Series Description

The ACI Plastic Box Series Thermistor and RTD Sensors are designed specifically for HVAC system temperature control. The A/*PB duct and immersion sensors come in thermistor and RTD sensor curves compatible with most BAS systems available today.

Kele Description

TEMP SENSOR, IMMERS, 100 RTD 385, 2.50", POLY ENCL, NO OUTPUT

Manufacturer

ACI
