TJDMR03 | Veris | Temperature Sensors & Transmitters

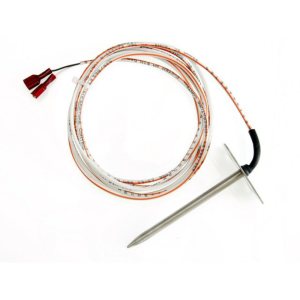

Wall temperature sensor, 20K Ω NTC thermistor, standard 10' of cable.

Brand:Veris

MPN:TJDMR03

SKU:TJDMR03

List Price:

$-.--

Today's Price:

$-.--

product datasheet

installation instructions

Lead time of 0 days. Chat with Kele experts now

product specifications

Type

Thermistor

Probe Length

8 in

Sensor Element

20K Thermistor

Housing

VAV Box

Output Signal

Resistance

product series specifications

Accuracy:

Thermistor:

2.2k, 3k, 20k, 100k: ±0.11°F (0.2°C)

10k Type 2 & 3: ±0.06°F (0.1°C)

RTD:

100, 100 385 curve: ±0.17°F (0.3°C)

Sensor Type:

Thermistor: 2.2kΩ, 3kΩ, 10kΩ Type 2 & 3, 20kΩ, 100kΩ

RTD: 100Ω, Pt 385 Curve; 1000Ω, Pt 385 Curve

Temperature Range:

Thermistor/RTD: -13 to 221°F (-25°F to 105°C)

Temperature Coefficient:

Thermistor: Negative temperature coefficient

RTD: Positive temperature coefficient

Mounting: Directly to duct

Wiring Terminations: 22 AWG pigtails; 3' to 5' (0.91 -1.52 m)

Probe length: 4" (10 cm) or 8" (20 cm)

Enclosure: plate mounted

Weight:

4": 0.15 lb (0.07 Kg)

8": 0.2 lb (0.09 Kg)

Warranty: 5 year

more information & related documents

Series Description

The Veris TJ Series VAV Box Duct Thermistor and RTD sensors are designed to mounts directly to the duct and is constructed for easy installation with optional quick disconnects when needed. The TJ Series comes in 4 in (10 cm) or 8 in (20 cm) lenghts.

Kele Description

VAV BOX DUCT 8IN 20K THMS 10FT

Manufacturer

Veris
