TJBDR10 | Veris | Temperature Sensors & Transmitters

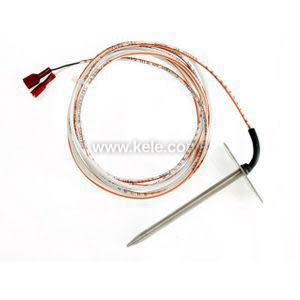

VAV Box Duct 4In 10K T2 Thermistor NIST 1 Pt
Brand:Veris
MPN:TJBDR10
SKU:TJBDR10
List Price:
$94.00
Today's Price:
$48.88
Log in for customized pricingproduct specifications
Type
Thermistor
Probe Length
4 in
Sensor Element
10K Type 2 Thermistor
Housing
VAV Box
Output Signal
Resistance
product series specifications
Accuracy:
Thermistor:
2.2k, 3k, 20k, 100k: ±0.11°F (0.2°C)
10k Type 2 & 3: ±0.06°F (0.1°C)
RTD:
100, 100 385 curve: ±0.17°F (0.3°C)
Sensor Type:
Thermistor: 2.2kΩ, 3kΩ, 10kΩ Type 2 & 3, 20kΩ, 100kΩ
RTD: 100Ω, Pt 385 Curve; 1000Ω, Pt 385 Curve
Temperature Range:
Thermistor/RTD: -13 to 221°F (-25°F to 105°C)
Temperature Coefficient:
Thermistor: Negative temperature coefficient
RTD: Positive temperature coefficient
Mounting: Directly to duct
Wiring Terminations: 22 AWG pigtails; 3' to 5' (0.91 -1.52 m)
Probe length: 4" (10 cm) or 8" (20 cm)
Enclosure: plate mounted
Weight:
4": 0.15 lb (0.07 Kg)
8": 0.2 lb (0.09 Kg)
Warranty: 5 year
more information & related documents
Series Description
The Veris TJ Series VAV Box Duct Thermistor and RTD sensors are designed to mounts directly to the duct and is constructed for easy installation with optional quick disconnects when needed. The TJ Series comes in 4 in (10 cm) or 8 in (20 cm) lenghts.
Kele Description
VAV BOX DUCT 4IN 10K T2 THMS NIST 1 PT
Manufacturer
Veris
