TFDKR00

TFDKR00 | Veris | Temperature Sensors & Transmitters

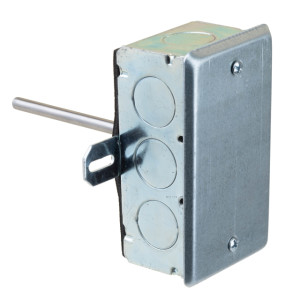

Duct Temperature Sensor, 10K Ω Thermistor With 11K Shunt

Brand:Veris

MPN:TFDKR00

SKU:TFDKR00

List Price:

$47.71

Today's Price:

$24.81



Availability: Usually Ships in Less Than 8 Business Days
Available Inventory
Lead times are estimates based on our Memphis location and subject to change without notice based on customer demand.

Need more?
Just order your desired quantity and we'll ship the available inventory immediately while we source the remaining quantity to get you all the products you need as soon as possible.

We can also reserve the available inventory and ship once we acquire the remaining quantity from the supplier. Just choose "Ship Complete" at checkout.

product specifications

Housing

Mounting Box

Housing Material

Metallic

Housing Rating

NEMA 1

Output

Resistance

Probe Length

8 in

Sensor Element

10K Thermistor Type 3 with 11K Shunt

Type

Thermistor

product series specifications

    Accuracy:
    Thermistor:
    2.2k, 3k,20k,100k:
  • ±0.11‚Ñâ (0.2‚ÑÉ)
    10k Type 2 & 3:
  • ± 0.06‚Ñâ (0.1‚ÑÉ)
    RTD:
    100, 100 385 curve:
  • ±0.17‚Ñâ (0.3‚ÑÉ)
    Sensor Type:
    Thermistor:
  • 2.2kŒ©, 3k‚Ѷ, 10k‚Ѷ Type 2 & 3, 20k‚Ѷ, 100k‚Ѷ
    RTD:
  • 100‚Ѷ, Pt 385 Curve; 1000‚Ѷ, Pt 385 Curve
    Temperature Range:
    Thermistor/RTD:
  • -13° to 221‚Ñâ (-25° to 105‚ÑÉ)
    Output:
  • Resistance, 4-20 Ma @ 500‚Ѷ
    Temperature Coefficient:
    Thermistor:
  • Negative temperature coefficient
    RTD:
  • Positive temperature coefficient
    Mounting:
  • Directly to duct
    Wiring Terminations:
  • 22 AWG pigtails; 3' to 5' (0.91 -1.52 m)
    Probe length:
  • 4‚Ä= (10 cm), 6‚Ä= (15 cm), 8‚Ä= (20 cm), 12‚Ä= (30 cm), 18‚Ä= (45 cm), 24‚Ä= (61 cm) and 36‚Ä= (91 cm)
    Enclosure:
  • mounting plate, handiox or weather proof enclosure
    Weight:
  • w/o different enclosures
    4‚Ä=:
  • 0.09 lb (0.04 Kg)
    6‚Ä=:
  • 0.11 lb (0.05 Kg)
    8‚Ä=:
  • 0.13 lb (0.06 Kg)
    12‚Ä=:
  • 0.24 lb (0.11 Kg)
    18‚Ä=:
  • 0.26 lb (0.12 Kg)
    24‚Ä=:
  • 0.35 lb (0.16 Kg)
    36‚Ä=:
  • 0.4 lb (0.18 Kg)
    Approvals:
  • CE
    Warranty:
  • 5 year

more information & related documents

Series Description

The Veris TD, TF, TG and TDDA Series Duct Thermistor and RTD Sensor provides precision remote temperature sensing for building automation systems and mechanical equipment room instrumentation. The sensing element is a highly stable precision thermistor material or platinum RTD. The TD Series is a stainless steel tube and mounting plate with lenghts of 4 in (10 cm), 6 in (15 cm), 8 in (20 cm), 12 in (30 cm), 18 in (45 cm), 24 in (61 cm) or 36 in (91 cm). The TF Series has metal handi box, while the TG Series has a weatherproof enclosure. The TDDA Series has weather proof enclosure and analog output.

Kele Description

DUCT TEMP HBOX 8 IN 10K W/11KS THMS

Manufacturer

Veris
