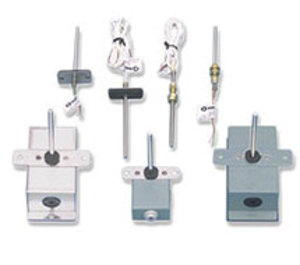

* product series image displayed

TE-702-A-17-D | MAMAC Systems | Temperature Sensors & Transmitters

TEMP SENSOR, DUCT, 20K, 12.00" PROBE, POLY ENCL, NO OUTPUT

Brand:MAMAC Systems

MPN:TE-702-A-17-D

SKU:TE-702-A-17-D

List Price:

$29.28

Today's Price:

$15.22

catalog page

Lead time of 10 days. Chat with Kele experts now

product specifications

Type

Thermistor

Housing Material

Poly

Probe Length

12 in

Sensor Element

20K Thermistor

Housing

Polycarbonate

Enclosure Rating

IP54

Output Signal

Resistance

product series specifications

Accuracy:

Thermistor: ±0.36°F (0.2°C)

RTD:

1KΩ Nickel, 1KΩ Balco: ±0.5°F (0.28°C)

100Ω, 1KΩ Pt 385: ±0.27°F (0.15°C)

Sensor Type

Thermistor: 2.252 kΩ, 3 kΩ, 10 kΩ Type II, III, 20 kΩ, 100 kΩ

RTD:

1kΩ Nickel

100Ω Pt 385 Curve

1kΩ Pt 385 Curve

Temperature Range Thermistor/RTD: -40° to 210°F (-40° to 100°C)

Temperature Coefficient:

Thermistor: Negative temperature coefficient

RTD: Positive temperature coefficient

Enclosure Rating: Depends on the model

Mounting: Directly to duct, wall, or single gang box

Wiring Terminations: 6' (1.8m) pigtails

Weight: depends on model

Approvals: CE, RoHs

Warranty: 5 years

product series features

Wide selection of thermistor and RTD curves
Tip sensitive for precise temperature response

more information & related documents

Series Description

The Mamac Systems Model TE701/702 Duct Temperature Sensors provides precision remote temperature sensing for building automation systems and mechanical equipment room instrumentation. The Mamac TE701A/B is a flanged mount duct temperature sensor. The Mamac TE701C/D is a bulkhead mount duct temperature sensor. The Mamac TE702A is a polycard enclosure duct temperature sensor. The Mamac TE702B is a galvanized steel enclosure duct temperature sensor. The Mamac TE702C is a painted steel enclosure duct temperature sensor.

Kele Description

TEMP SENSOR, DUCT, 20K, 12.00" PROBE, POLY ENCL, NO OUTPUT

Manufacturer

MAMAC Systems
