A/AN-D-6-PB | ACI | Temperature Sensors & Transmitters

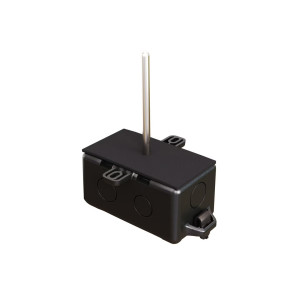

6" DUCT TEMP. SENSOR 10K TYP 3 PLASTIC BOX
Manufacturer:ACI
MPN:A/AN-D-6-PB
SKU:A/AN-D-6-PB
List Price:
35.70
Today's Price:
19.99
add to cart
product family specifications
Accuracy
Thermistor
±0.36℉ (0.2℃)
RTD
±0.50℉ (0.28℃)
Sensor Type
Thermistor
10 kΩ Type II & III, 20 kΩ, 100 kΩ
RTD
100Ω, 1000Ω 385 curve
Temperature Range
-40° to 275℉ (-40° to 135℃)
Stability
Thermistor
0.24℉ (0.13℃) over five years
RTD
±0.1℃ drift
Heat Dissipation
Thermistor, 3 mW/℃ (power needed to raise the temperature by 1℃)
Measurement Range
-40° to 302℉ (-40° to 150℃)
Enclosure Rating
NEMA 1, Galvanized metal box
Wiring Terminations
10″ of 22 AWG wire or terminal strip
Weight
4″
0.6 lb (0.27 Kg)
8″
0.72 lb (0.72 Kg)
12″
0.9 lb (0.41 Kg)
18″
1.0 lb (0.45 Kg)
Approvals
CE
Warranty
5 years
product family features
- Five-year warranty
- Wide selection of thermistor or RTD curves
- Stainless steel probes
more information & related documents
Family Description
The ACI Duct Series Thermistor and RTD Sensors are designed specifically for HVAC system temperature control. The duct sensors come in thermistor and RTD sensor curves compatible with most BAS systems available today. Duct sensors come with a foam-backed handy box and 8″ probe. The A/*D Duct Sensor should be mounted close to the center of the duct and penetrate through any duct insulation at least 1″ (2.5 cm) into the airflow. The probes are sensitive within 1″ of the tip and insert through a 3/8″ (1 cm) hole. Use standard metal screws to secure to the duct.
Kele Description
6" DUCT TEMP. SENSOR 10K TYP 3 PLASTIC BOX
Manufacturer
ACI
