A/TT1K-D-6"-2-GD | ACI | Temperature Sensors & Transmitters

TT100-0100-BO-1||TT100-0100-BO-2||TT100-0100-BO-4||TT1K-0100-BO-1||TT1K-0100-BO-2||TT1K-0100-BO-4||UR

Duct Temperature||Air Handling Unit

Platinum RTD, Duct, 1K Ω RTD, 6", 2-10 VDC, Galvanized Box, 0-1K°F

Metallic

NEMA 1

2-10 VDC

6.00"

1K RTD 385

TEMP XMTR, DUCT, 1K RTD 385, 6.00" PROBE, METALLIC ENCL

RTD

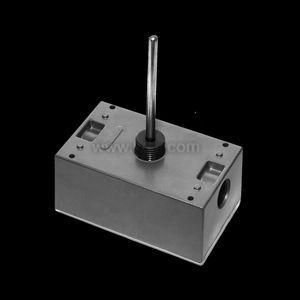

The ACI Duct Series Thermistor and RTD Sensors are designed specifically for HVAC system temperature control. The duct sensors come in thermistor and RTD sensor curves compatible with most BAS systems available today. Duct sensors come with a foam-backed handy box and 8″ probe. The A/*D Duct Sensor should be mounted close to the center of the duct and penetrate through any duct insulation at least 1″ (2.5 cm) into the airflow. The probes are sensitive within 1″ of the tip and insert through a 3/8″ (1 cm) hole. Use standard metal screws to secure to the duct.

TEMP XMTR, DUCT, 1K RTD 385, 6.00" PROBE, METALLIC ENCL

ACI
