RIBM2402D

RIBM2402D | Functional Devices | Relays & Contactors

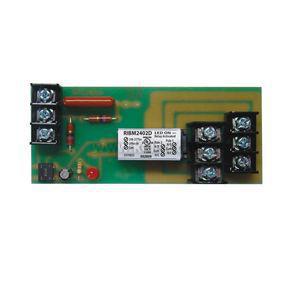

4.00" Track Mount Pilot Relay 10 Amp DPDT with 24 Vac/dc/208-277 Vac Coil

Manufacturer:Functional Devices

MPN:RIBM2402D

SKU:RIBM2402D

list price:

51.45

25.73



(login for better pricing)
USD

availability:Usually Ships in Less Than 6 Business Days

add to cart

arrow

product specifications

Application

MT4

Coil Voltage

24 VAC||24 VDC||208-277 VAC

Contact Rating

10A @ 30 VDC||10A @ 277 VAC

Contact Type

1-DPDT

Description

4.00" Track Mount Pilot Relay 10 Amp DPDT with 24 Vac/dc/208-277 Vac Coil

Feature

LED

LCD

Track

Short Description

BOARD MOUNTED RELAYS, 1-DPDT, 24 VAC/24 VDC/208-277 VAC, NO OVR SW, LED

product family features

  • Convenient and economical to use
  • Handy, track-mounted modules
  • Attractive, stackable metal enclosure
  • Relay status indicator via LED
  • Coil uses low current and accepts wide range of AC & DC voltages
  • Closed/Open/Auto switch option available
  • High density relay packaging
  • UL listed enclosure and relay modules

more information & related documents

Family Description

The RIBM Series Modular Panel Relays allow the installer to mount a combination of relays in an attractive metal enclosure. Panel relays are available to control most BAS, HVAC, low-horsepower motors and lighting applications. The relay modules snap into a 4" (10.16 cm) wide plastic track. This relay system provides a convenient and cost-saving method of mixing and matching relays of different ratings to suit the applications' requirements. Connections to the modules are made by wiring to screw terminals. Input connections can be grouped on one side of the enclosure and output connections on the other to separate high-voltage and low-voltage wires. There is plenty of room within the enclosure for wire runs, and the housings can be stacked vertically or horizontally. The relay modules can be snap-track mounted inside the housing (pictured) or mounted into available space in other equipment. The track is available in 2" (5.08 cm) lengths for mounting one module or in 12" (30.5 cm) lengths for mounting several modules. RIBM Pilot Series - 10A, 15A modular relays have contacts rated up to 15A and are used to control light electrical loads, drive power relays/contactors or to sense the voltage fed to electrical loads. The pilot modular relays require a low coil drive current and are provided with circuitry to allow powering the relay coil from a wide range of AC or DC voltages. RIBM Power Series - 30A modular relays have contacts rated up to 30A. They require modest coil drive current and are used for direct switching and control of heavy electrical circuits such as large resistive, motor, or lighting loads.

Kele Description

PNL RLY 4X1.70IN 10A DPDT 24VAC/DC/208-277

Manufacturer

Functional Devices
