BASRTLX-B/P | Contemporary Controls | Network & Wireless

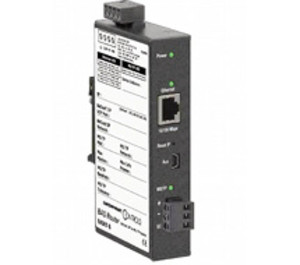

BAS ROUTER BACNET PANEL MOUNT
Manufacturer:Contemporary Controls
MPN:BASRTLX-B/P
SKU:BASRTLX-B/P
List Price:
974.00
Today's Price:
545.44
add to cart
product family specifications
Supply Voltage
24 VAC @ 4 VA, 24 VDC @ 167 mA
Communication
Ethernet BACnet IP, IEEE 802.3 10/100 Mbps data rate 10BASE-T, 100BASE-TX (100 m (max) CAT5 cable length)
MS/TP BACnet MS/TP, ANSI/ASHRAE 135 (ISO 16484-5) 9600, 19200, 38400, 76800 bps data rate EIA-485 (1200 m (max) cable length)
LED Indication
Power Green = power OK
Ethernet Green = 100 Mbps
Yellow = 10 Mbps
Flash = activity
MS/TP Flashing green = receive activity
Operating Temperature
32° to 140°F (0° to 60°C)
Operating Humidity
10 to 95% (non-condensing)
Dimensions
4.85"H x 2.74"W x 1.0"D (12.3 x 1.9 x 2.5 cm)
Mounting
DIN Rail (35mm)
Weight
0.6 lbs (0.27 Kg)
Approvals
CE Mark; CFR 47, Part 15 Class A, RoHS
Warranty
2 years
product family features
- Versatile routing
- Flexible communications
- IP network support
- Easy installation
more information & related documents
Family Description
The BASRT-B BACnet multi-network router provides stand-alone routing between BACnet networks such as BACnet/IP, BACnet Ethernet, and BACnet MSTP. This allows the system integrator to mix BACnet network technologies within a single BACnet internetwork. There are two physical communication ports on the BAS Router. One is a 10/100 Mbps Ethernet port and the other an isolated MS/TP port. Configuration is accomplished via a web page. The BACnet router is housed in a plastic case that is powered from a USB port on a laptop computer. There is one MS/TP port and one 10/100 Mbps Ethernet port.
Kele Description
BAS ROUTER BACNET PANEL MOUNT
Manufacturer
Contemporary Controls
